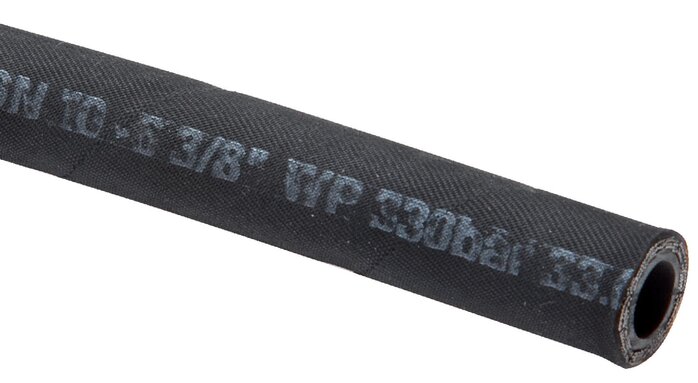

Item description
Materials:
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone and weather resistant, pressure carrier: one or two steel wire braids
Media:
Hydraulic oils on basis of mineral oil, air**, vacuum*** (max. -0,83 bar according to SAE 100 R4), water, lubricants and fuels
Operating range:
high pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Temperature range:
-40 to +100 °C (temporarily +125 °C)
Advantages:
•high flexibility,
•small bending radii
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone and weather resistant, pressure carrier: one or two steel wire braids
Media:
Hydraulic oils on basis of mineral oil, air**, vacuum*** (max. -0,83 bar according to SAE 100 R4), water, lubricants and fuels
Operating range:
high pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Temperature range:
-40 to +100 °C (temporarily +125 °C)
Advantages:
•high flexibility,
•small bending radii
Properties
| DN [mm] | 16 |
| Hose diameter (inner) [mm] | 16 |
| Hose diameter (outer) [mm] | 23,6 |
| Operating pressure [bar] | 250 |
| Burst pressure [bar] | 1050 |
| Min. bend radius [mm] | 90 |
| Size parameter | 10 |
Further information on 2SC16
| Weight | 650 g / m |
| GTIN | 4050571188917 |
| Customs duty number | 40092100 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 471) (PDF)
- Data sheet (Print view)
**Hose must be crimped, ***1 SN 38 & 1 SN 51 not suitable for vacuum
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
