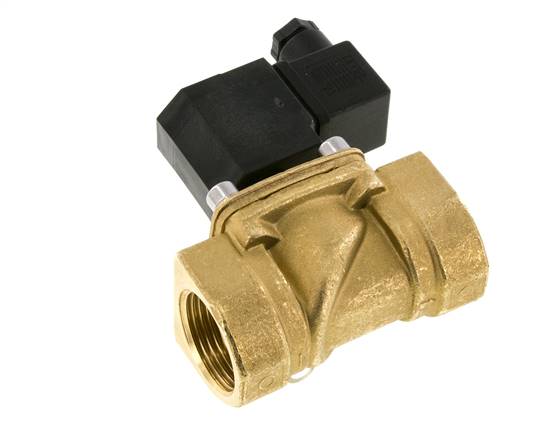

2/2-way brass solenoid valve G 1", -0,95 to 9 bar, normally closed (NC)
Item number:
M 2100 24V=
Item description
Materials:
Bodies: brass, internal parts: brass / stainless steel, seal: NBR
Temperature range:
-10 °C to max. +90 °C (G 1-1/4" - G 1-1/2" and normally open (NO): -10 °C to max. +80 °C), ambient: max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request
Installation position:
with standing and lying magnet
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Optional:
FKM seal (-10°C to max. +130°C, G 1-1/4" - G 1-1/2": max. +80°C) -V, EPDM seal for air and hot water (-10°C to max. +120°C, G 1-1/4" - G 1-1/2": max. +80°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Bodies: brass, internal parts: brass / stainless steel, seal: NBR
Temperature range:
-10 °C to max. +90 °C (G 1-1/4" - G 1-1/2" and normally open (NO): -10 °C to max. +80 °C), ambient: max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request
Installation position:
with standing and lying magnet
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Optional:
FKM seal (-10°C to max. +130°C, G 1-1/4" - G 1-1/2": max. +80°C) -V, EPDM seal for air and hot water (-10°C to max. +120°C, G 1-1/4" - G 1-1/2": max. +80°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 24 V DC |
| function | normally closed (NC) |
| Thread | G 1" |
| Seals | NBR |
| Operating pressure [bar] | -0.95 to 9 |
| DN [mm] | 20 |
| L [mm] | 81,5 |
| Kv value* [l/min] | 124 |
| Suction performance [m³/h] | 246 |
| Suction performance [l/min] | 4100 |
| Power consumption (DC) [W] | 14 |
| Structural shape solenoid coil | G |
| Spare solenoid coil | MAG G 24V= |
| Media temperature [°C] | -10 to +90 |
Further information on M210024V=
| Weight | 900 g / pcs |
| GTIN | 4050571472818 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 713) (PDF)
- Documentation: DGRL, EMC, NSR statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
