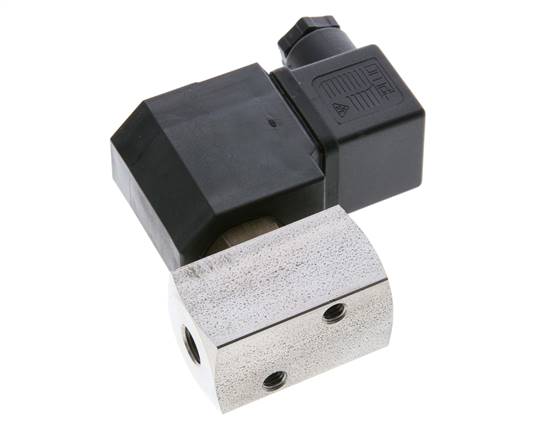

2/2-way ES solenoid valve G 1/8", 0 to 15 bar, normally closed (NC)
Item number:
M 218 ES 230V
Item description
Materials:
Body G 1/8" and G 1/4": 1.4104, G 1/2" to G 2": 1.4581 (internal parts 1.4104), seal: FKM
Temperature range:
-20 to +130 °C, ambience: -10 to +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets, (G 3/8" - G 2" also with horizontal magnets)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Body G 1/8" and G 1/4": 1.4104, G 1/2" to G 2": 1.4581 (internal parts 1.4104), seal: FKM
Temperature range:
-20 to +130 °C, ambience: -10 to +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets, (G 3/8" - G 2" also with horizontal magnets)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Properties
| Control voltage | 230 V AC |
| function | normally closed (NC) |
| Thread | G 1/8" |
| Operating pressure [bar] | 0 - 15 |
| DN [mm] | 3 |
| L [mm] | 45 |
| Kv value* [l/min] | 4,5 |
| Power consumption (AC) [VA] | 18 |
| Structural shape solenoid coil | G |
| Spare solenoid coil | MAG G 230V |
Further information on M218ES230V
| Weight | 450 g / pcs |
| GTIN | 4050571475017 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 714) (PDF)
- Documentation: DGRL, EMC, NSR statement (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
