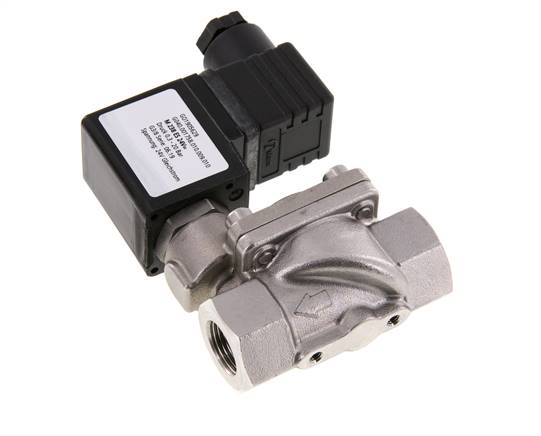

2/2-way ES solenoid valve G 3/8", 0,3 to 20 bar, normally closed (NC)
Item number:
M 238 ES 12V=
Item description
Materials:
Body G 1/8" and G 1/4": 1.4104, G 1/2" to G 2": 1.4581 (internal parts 1.4104), seal: FKM
Temperature range:
-20 to +130 °C, ambience: -10 to +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets, (G 3/8" - G 2" also with horizontal magnets)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Body G 1/8" and G 1/4": 1.4104, G 1/2" to G 2": 1.4581 (internal parts 1.4104), seal: FKM
Temperature range:
-20 to +130 °C, ambience: -10 to +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets, (G 3/8" - G 2" also with horizontal magnets)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Properties
| Control voltage | 12 V DC |
| function | normally closed (NC) |
| Thread | G 3/8" |
| Operating pressure [bar] | 0,3 - 20 |
| DN [mm] | 13 |
| L [mm] | 67 |
| Kv value* [l/min] | 55 |
| Power consumption (DC) [W] | 11 |
| Structural shape solenoid coil | A |
| Spare solenoid coil | MAG A 12V= |
Further information on M238ES12V=
| Weight | 650 g / pcs |
| GTIN | 4050571477165 |
| Customs duty number | 84812090 |
YouTube videos:
Documents
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
