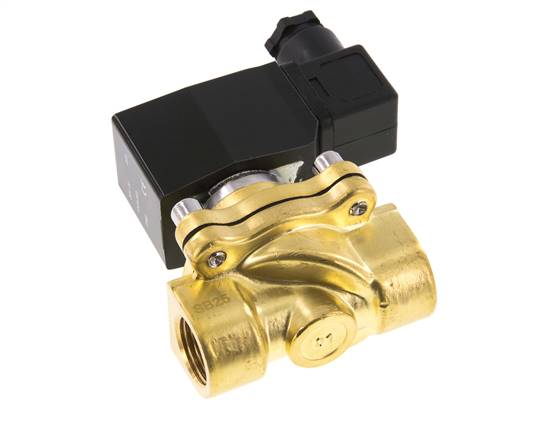

2/2-way MS solenoid valve G 1/2", 0-6/10 (DC/AC) bar, NC
Item number:
ZS 12 230V
Item description
Materials:
Bodies: brass, internal parts: brass / stainless steel, seal: NBR
Temperature range:
-10°C to max. +80°C, ambience: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Bodies: brass, internal parts: brass / stainless steel, seal: NBR
Temperature range:
-10°C to max. +80°C, ambience: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Version | 2/2-way solenoid valve |
| Control voltage | 230 V AC |
| function | normally closed (NC) |
| Thread | G 1/2" |
| Seals | NBR |
| Operating pressure [bar] | 0 - 10 |
| DN [mm] | 16 |
| L [mm] | 69 |
| Kv value* [l/min] | 68 |
| Power consumption (AC) [VA] | 24 |
| Structural shape solenoid coil | Q |
| Spare solenoid coil | MAG Q 230V |
| Spare membrane (sealing kit**) NBR | ZS 381234 MEM N |
| Spare membrane (sealing kit**) FKM | ZS 381234 MEM V |
| Spare membrane (sealing kit**) EPDM | ZS 381234 MEM EP |
| Media temperature [°C] | -10 to +80 |
Further information on ZS12230V
| Weight | 900 g / pcs |
| GTIN | 4050571816490 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 713) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
**Spare diaphragm is supplied including all elastomer seals and can be used for subsequently changing the seal material.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
