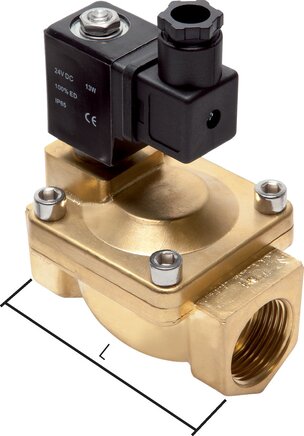

2/2-way solenoid valve G 1-1/2", normally closed (NC),NBR Eco
Item number:
SLP 112 230V
Item description
Materials:
Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
-10°C up to max. +80°C (types G 1/8" and G 1/4": -10°C up to max. +130°C), ambience: max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
-10°C up to max. +80°C (types G 1/8" and G 1/4": -10°C up to max. +130°C), ambience: max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Properties
| Version | 2/2-way solenoid valve |
| Control voltage | 230 V AC |
| function | normally closed (NC) |
| Thread | G 1-1/2" |
| Seals | NBR |
| Operating pressure [bar] | 0,5 - 16 |
| DN [mm] | 40 |
| L [mm] | 131 |
| Kv value* [l/min] | 427 |
| Power consumption (AC) [VA] | 22 |
| Structural shape solenoid coil | P |
| Spare solenoid coil | MAG P 230V |
| Spare membrane NBR | SLP 114112 MEM N |
| Spare membrane FKM | SLP 114112 MEM V |
| Spare membrane EPDM | SLP 114112 MEM EP |
| Media temperature [°C] | -10 to +80 |
Further information on SLP112230V
| Weight | 2,8 kg / pcs |
| GTIN | 4050571631154 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 712) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
