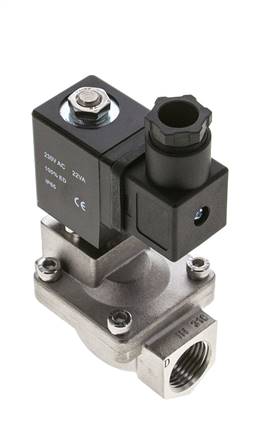

2/2-way solenoid valve G 1/2", normally closed (NC),24 V DC Eco
Item number:
SLP 12 ES 24V=
Item description
Materials:
Bodies: 1.4408, internal parts: stainless steel, seal: FKM
Temperature range:
-20°C to +120°C, ambience: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
P (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Bodies: 1.4408, internal parts: stainless steel, seal: FKM
Temperature range:
-20°C to +120°C, ambience: max. +65 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
P (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Properties
| Version | 2/2-way solenoid valve |
| Control voltage | 24 V DC |
| function | normally closed (NC) |
| Thread | G 1/2" |
| Operating pressure [bar] | 0,5 - 16 |
| DN [mm] | 13 |
| L [mm] | 66 |
| Kv value* [l/min] | 64 |
| Power consumption (DC) [W] | 13 |
| Structural shape solenoid coil | P |
| Spare solenoid coil | MAG P 24V= |
| Spare membrane NBR | SLP 12 MEM N |
| Spare membrane FKM | SLP 12 MEM V |
| Spare membrane EPDM | SLP 12 MEM EP |
Further information on SLP12ES24V=
| Weight | 700 g / pcs |
| GTIN | 4050571631390 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 714) (PDF)
- Documentation (PDF)
- Documentation: DGRL, EMC, NSR statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
