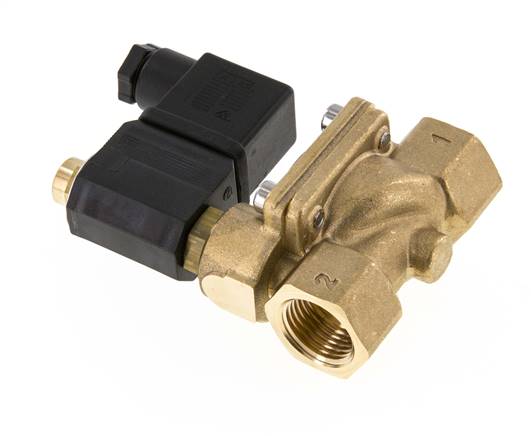

2/2-way solenoid valve G 1/2" normallyopen (NO),EPDM
Item number:
MO 212 EP 230V
Item description
Materials:
Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
-10°C to max. +90°C (types G 1/8" and G 1/4": -10°C to max. +130°C), environment: max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Body: brass, internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
-10°C to max. +90°C (types G 1/8" and G 1/4": -10°C to max. +130°C), environment: max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request
Installation position:
With upright magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Optional:
FKM seal (-10°C to max. +130°C) -V, EPDM seal for air and warm water (-10°C to max. +120°C) -EP
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Properties
| Control voltage | 230 V AC |
| function | normallyopen (NO) |
| Thread | G 1/2" |
| Seals | EPDM |
| Operating pressure [bar] | 0,3 - 16 |
| DN [mm] | 13 |
| L [mm] | 67 |
| Kv value* [l/min] | 63 |
| Power consumption (AC) [VA] | 10 |
| Structural shape solenoid coil | K |
| Spare solenoid coil | MAG K 230V |
| Media temperature [°C] | -10 to +120 |
Further information on MO212EP230V
| Weight | 500 g / pcs |
| GTIN | 4050571494124 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 712) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
