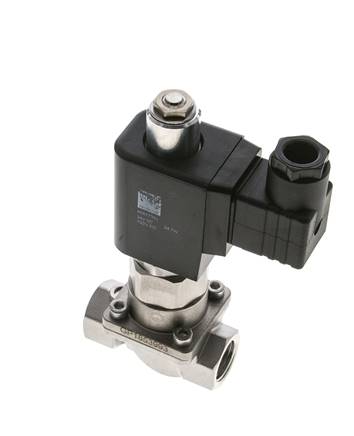

2/2-way SS solenoid valve G 1/2", 0-16 bar, normally closed (NC)
Item number:
M 2120 ES 12V=
Item description
Materials:
Bodies: 1.4581 (internal parts 1.4104), seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Operating pressure:
0 to 16 bar
Installation position:
With upright magnets, opened without power (NO), also with horizontal magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Bodies: 1.4581 (internal parts 1.4104), seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, other media on request
Operating pressure:
0 to 16 bar
Installation position:
With upright magnets, opened without power (NO), also with horizontal magnets
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 12 V DC |
| function | normally closed (NC) |
| Thread | G 1/2" |
| DN [mm] | 13 |
| L [mm] | 67 |
| Kv value* [l/min] | 65 |
| Power consumption (DC) [W] | 26 |
| Structural shape solenoid coil | C |
| Spare solenoid coil | MAG C 12V= |
Further information on M2120ES12V=
| Weight | 900 g / pcs |
| GTIN | 4050571474133 |
| Customs duty number | 84812090 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 715) (PDF)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
