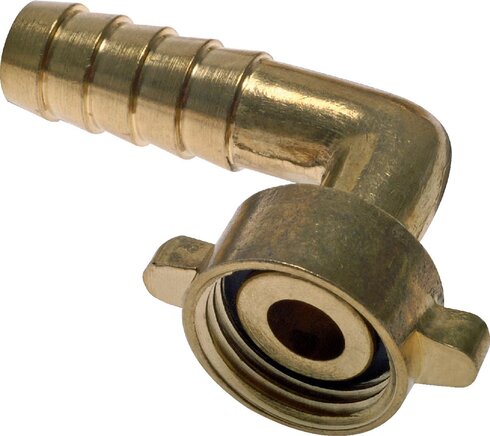

2/3 hose screw connection, with nut G 1/2"-10mm, Angle 90°

Item number:

STW 1210 F MS

All items of this group
€6.38 incl. VAT
pcs
Item description
Materials:
 Body: brass, seal: NBR

Temperature range:
 0 to +90 °C
Properties
Thread G 1/2"
Hose di­am­e­ter (inner) [mm] 10
Ver­sion Angle 90°
Re­place­ment seals (NBR) ST 12 DI
Further information on STW1210FMS
Weight 46 g / pcs
GTIN 4050571649456
Customs duty number 74198090
RoHS compliant Yes
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
