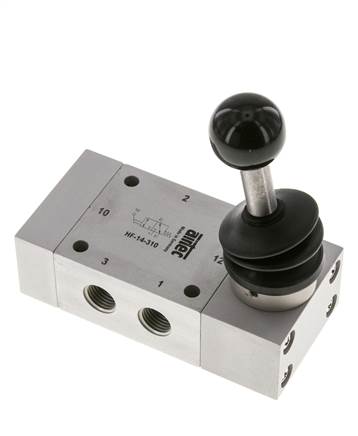

3/2-way hand lever valve, spring return, G 1/4", Standard
Item number:
HF 14 310
Item description
Materials:
Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Optional:
ATEX approval -X
Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Optional:
ATEX approval -X
Properties
| Version | Standard |
| function | spring return |
| Thread (2x) | G 1/4" |
| Thread exhaust air (1x) | G 1/4" |
| Nominal width [mm] | 9 |
| flow [l/min] | 1580 |
| Operating pressure [bar] | 0 - 12 |
| A [mm] | 50 |
| B [mm] | 30 |
| C [mm] | 44 |
| D [mm] | 36 |
| E [mm] | 5,5 |
| F [mm] | 30 |
| G [mm] | 46 |
| H [mm] | 112 |
| I [mm] | 37 |
| L [mm] | 104 |
| M [mm] | 22 |
Further information on HF14310
| Weight | 490 g / pcs |
| GTIN | 4050571359171 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
