3/2-way hand lever valve, spring return, G 1/8"

XMV 110

{{ $t('shop.display.artikel.link_zur_artikelgruppe') }}

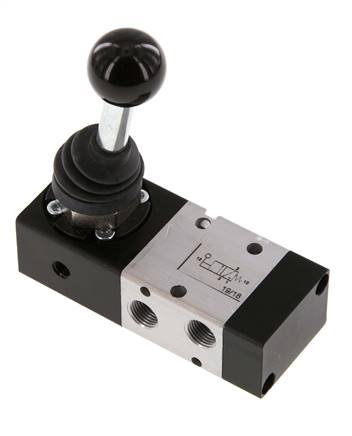

Exemplary representation: 3/2-way hand lever valve Schematic symbol: 3/2-way axial hand lever valve with spring return
83,73€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
 Body and slider: aluminium, seals: NBR

Temperature range:
 -15°C to +60°C

Operating pressure:
 -0,95 to 10 bar

Media:
 lubricated and unlubricated, filtered compressed air, vacuum

Pressure input:
 Possible on every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
function spring return
Thread G (2x) G 1/8"
Thread exhaust air G (1x) G 1/8"
Nominal width [mm] 5
flow [l/min] 550
A [mm] 12
B [mm] 31,5
C [mm] 34,0
D [mm] 32
E [mm] 23,3
F1 [mm] 16
H [mm] 5,5
K1 [mm] 16
K2 [mm] 17,2
L [mm] 86,5
M [mm] 22
N [mm] 14,0
O [mm] 10,0
P [mm] 18
XMV110
{{ $t('shop.all.gewicht') }} 190 g / pcs
{{ $t('shop.all.gtin') }} 4050571802516
{{ $t('shop.display.artikel.zollwarennummer') }} 84814090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 748) atlas9_seiten/748.pdf
    3D CAD file (surface model) protected/cad/3d/72460/xmv110#29058.stp
    Directional valves - Overview, function and explanation of 3/2-way valves
  • {{ $t('shop.display.datenblatt.titel') }} (Print view)


{{ $t('shop.all.unverbindliche_richtwerte') }}
