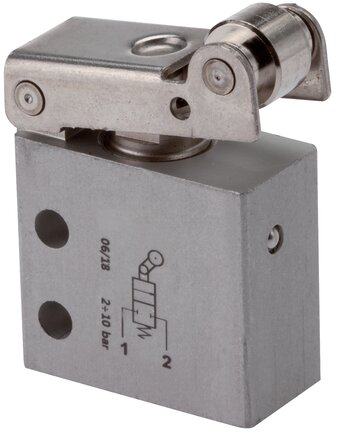

Item description
Materials:
Body: anodised aluminium (ER 25 311: nickel-plated brass), internal parts: brass, stainless steel and aluminium, seals: NBR, lever: steel, tappet and castor: steel and plastic
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Type NC/NO: possible at every connection
Body: anodised aluminium (ER 25 311: nickel-plated brass), internal parts: brass, stainless steel and aluminium, seals: NBR, lever: steel, tappet and castor: steel and plastic
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Type NC/NO: possible at every connection
Properties
| function | 3/2-way (NC) |
| Actuation | Roller lever |
| Thread (2x) | M 5 |
| Nominal width [mm] | 2,5 |
| flow [l/min] | 100 |
| Operating pressure [bar] | 2 - 10 |
| Actuating force at 6 bar [N] | 6 |
Further information on ER25310B
| Weight | 50 g / pcs |
| GTIN | 4050571283940 |
| Customs duty number | 84814090 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 747) (PDF)
- 3D CAD file (surface model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
