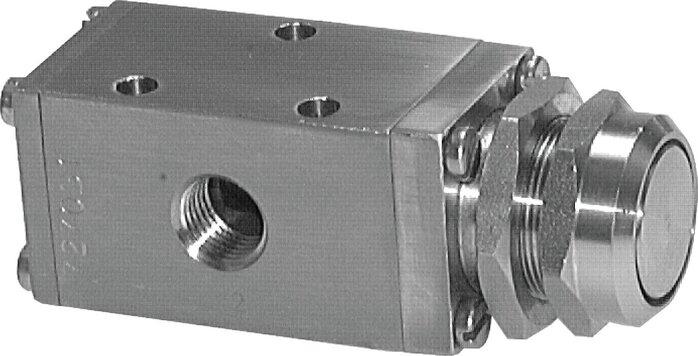

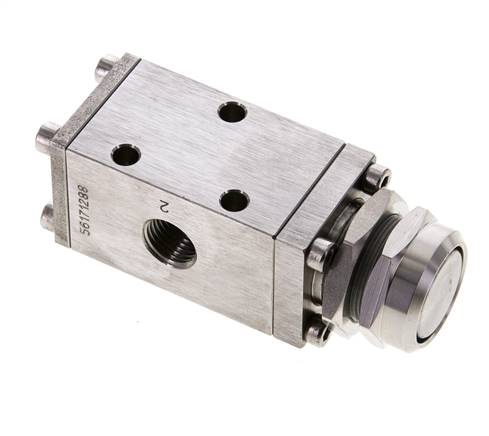

3/2-way (NC/NO)-Pushbutton valve G 1/4", spring return
Item number:
T 05 311 P ESG
Item description
Materials:
Body and slider: 1.4436, seals: FKM
Temperature range:
-20 to +180 °C
Operating pressure:
-0,95 to 12 bar
Media:
lubricated and unlubricated compressed air, non-toxic gases and liquids (50 µm)
Actuating force:
76 N (at 10 bar)
Pressure input:
Possible on every connection
Switch panel mounting:
Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 4 mm)
Body and slider: 1.4436, seals: FKM
Temperature range:
-20 to +180 °C
Operating pressure:
-0,95 to 12 bar
Media:
lubricated and unlubricated compressed air, non-toxic gases and liquids (50 µm)
Actuating force:
76 N (at 10 bar)
Pressure input:
Possible on every connection
Switch panel mounting:
Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 4 mm)
Properties

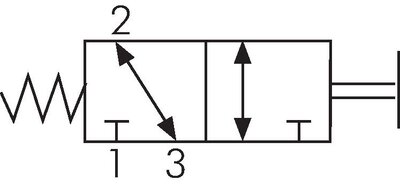

| Switching | 3/2-way (NC/NO) |
| function | spring return |
| Thread (2x) | G 1/4" |
| Thread exhaust air | G 1/4" |
| flow [l/min] | 500 |
Further information on T05311PESG
| Weight | 490 g / pcs |
| GTIN | 4050571682217 |
| Customs duty number | 84812090 |
Documents
- Catalogue page Atlas 9 (Page 784) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
