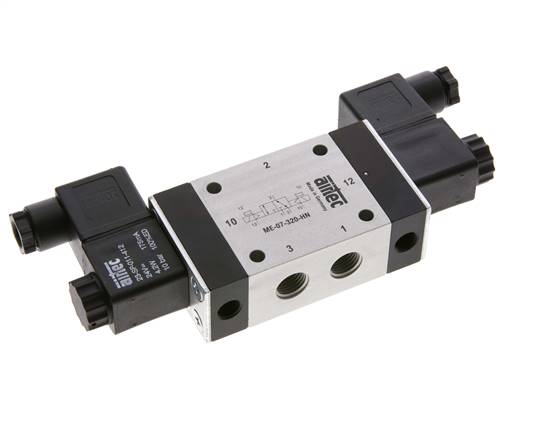

3/2-way solenoid pulse valve with external air connection, G 1/4"
Item number:
ME 07320HN 24V=
Item description
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Possible on every connection
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1)
Pressure input:
Possible on every connection
Properties
| Control voltage | 24 V DC |
| Thread (2x) | G 1/4" |
| Thread exhaust air (1x) | G 1/4" |
| Thread, pilot supply (2x) | G 1/8" |
| Nominal width [mm] | 9 |
| flow [l/min] | 1580 |
| Operating pressure [bar] | 0 - 10 |
| Control pressure [bar] | 1,5 - 10 |
| Power consumption (DC) [W] | 4,2 |
| Spare solenoid coil | MAG N 24V= |
Further information on ME07320HN24V=
| Weight | 550 g / pcs |
| GTIN | 4050571484088 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
