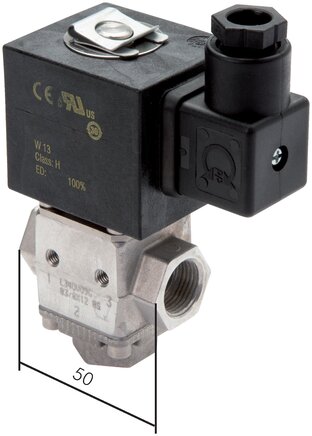

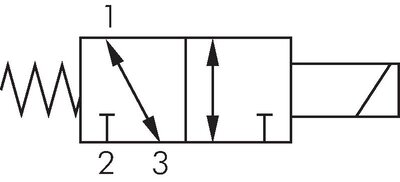

3/2-way solenoid valve for biodiesel, G 3/8", 12 V DC
Item number:
M 338 12V= OKO
Item description
Materials:
Body: anodized aluminium, internal parts: stainless steel, seal: FKM
Temperature range:
-20 to +130 °C, environment: max. +80 °C
Power consumption:
13 W
Media:
Biodiesel, vegetable oils, rapeseed oil, diesel fuel
Installation position:
arbitrary
Control voltages:
24 V DC, 12 V DC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
Possible on every connection
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: anodized aluminium, internal parts: stainless steel, seal: FKM
Temperature range:
-20 to +130 °C, environment: max. +80 °C
Power consumption:
13 W
Media:
Biodiesel, vegetable oils, rapeseed oil, diesel fuel
Installation position:
arbitrary
Control voltages:
24 V DC, 12 V DC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
Possible on every connection
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 12 V DC |
| Thread (2x) | G 3/8" |
| Thread exhaust air | G 3/8" |
| Operating pressure [bar] | 0 - 4 |
| DN [mm] | 12 |
| Kv value* [l/min] | 23 |
Further information on M33812V=OKO
| Weight | 500 g / pcs |
| GTIN | 4050571478551 |
| Customs duty number | 84812090 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 717) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge. Air flow rate [l/min] approx. 13,4 x kv x Pinput, when Poutput < Pinput/2 (Pinput and Poutput are absolute values in bar.)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
