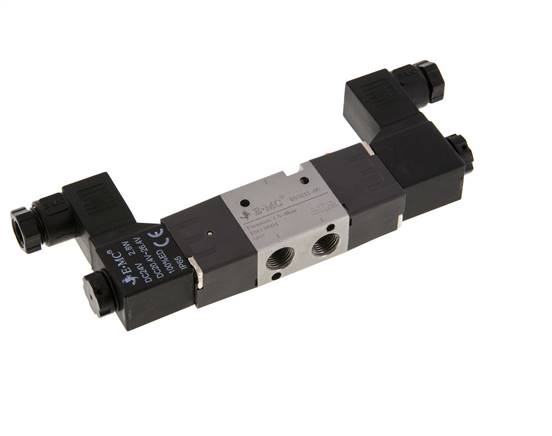

3/2-way solenoid valve, G 1/8", pulse valve, 230 V AC

Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:
-5°C to +60°C

Operating pressure:
1,5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
S (plug size 0)

Information:
The coil and plug are enclosed as loose parts.

Control voltage	230 V AC
function	pulse valve
Thread G1 (2x)	G 1/8"
Thread exhaust air G1 (1x)	G 1/8"
Nominal width [mm]	3,9
flow [l/min]	500
Power consumption (AC) [VA]	3
Spare solenoid coil	MAG S 230V
A [mm]	132,2
B [mm]	27
C [mm]	18
D [mm]	7,5
E [mm]	55,6
F [mm]	21
H1 [mm]	3,2
H2 [mm]	3,3
J [mm]	13
K [mm]	56,6
L [mm]	19
M [mm]	58,1
N [mm]	16
O [mm]	67,1
P [mm]	1,5
U [mm]	55,2
V [mm]	33,9
W [mm]	2

{{ $t('shop.all.gewicht') }}	175 g / pcs
{{ $t('shop.all.gtin') }}	4050571714734
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }}	EMC
