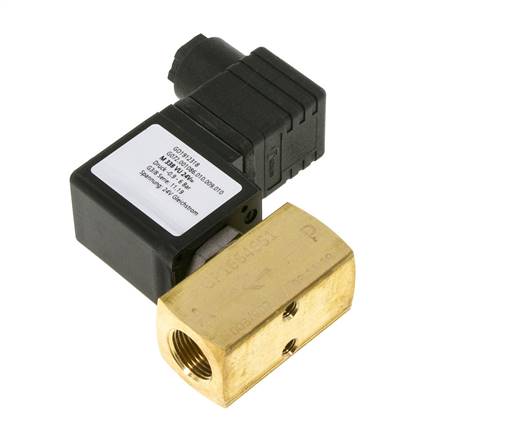

3/2-way vacuum valve, G 3/8", -0,9 to 6bar, 230 V AC

Materials:
Body: brass, internal parts: 1.4104, seal: FKM

Temperature range:
-10°C to +80°C, environment: max. +35°C

Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)

Installation position:
with upright magnets (type standard: any)

Control voltages:
24 V DC, 230 V AC

Voltage tolerance:
± 10 %

Protection class:
IP 65 (plug size 3)

Pressure input:
P (type Universal: possible at every connection)

Vacuum inlet:
P (type Universal: possible at every connection)

Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).

Information:
These valves are always supplied with a solenoid coil and a connector plug.

Version	Standard
Control voltage	230 V AC
function	closed (NC) without power
Thread (2x)	G 3/8"
Operating pressure [bar]	-0.9 to 6
DN [mm]	3
Suction performance [m³/h]	5
Suction performance [l/min]	83
Kv value* [l/min]	3,3
L [mm]	50
Power consumption (AC) [VA]	20
Structural shape solenoid coil	A
Spare solenoid coil	MAG A 230V

{{ $t('shop.all.gewicht') }}	450 g / pcs
{{ $t('shop.all.gtin') }}	4050571478599
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
