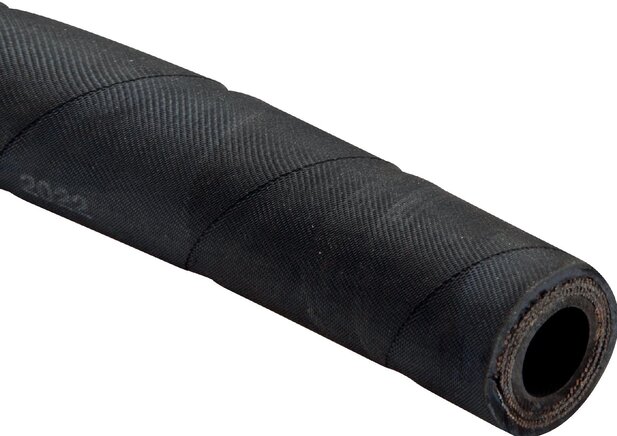

Item description
Materials:
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone-, weather- and UV-resistant, pressure carrier: four steel wire spirals
Temperature range:
-40 to +121 °C
Media:
Hydraulic oils on basis of mineral oil, air*, water, lubricants and fuels, bio oils
Operating range:
high pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Inner core: synthetic rubber, outer cover: synthetic rubber, ozone-, weather- and UV-resistant, pressure carrier: four steel wire spirals
Temperature range:
-40 to +121 °C
Media:
Hydraulic oils on basis of mineral oil, air*, water, lubricants and fuels, bio oils
Operating range:
high pressure hydraulic systems
Delivered as:
Due to the manufacturing process, we cannot exclude that the goods are delivered in parts. We try to deliver a maximum of 3 sections smaller than 20 m. and none of the sections is shorter than 3 m.
Properties
| DN [mm] | 12 |
| Hose diameter (inner) [mm] | 12,7 |
| Hose diameter (outer) [mm] | 24,2 |
| Operating pressure [bar] | 420 |
| Burst pressure [bar] | 1750 |
| Min. bend radius [mm] | 175 |
| Size parameter | 8 |
Further information on 4SP12
| Weight | 900 g / m |
| GTIN | 4050571199036 |
| Customs duty number | 40092100 |
| RoHS compliant | Yes |
YouTube videos:
Documents
*hose must be pricked
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
