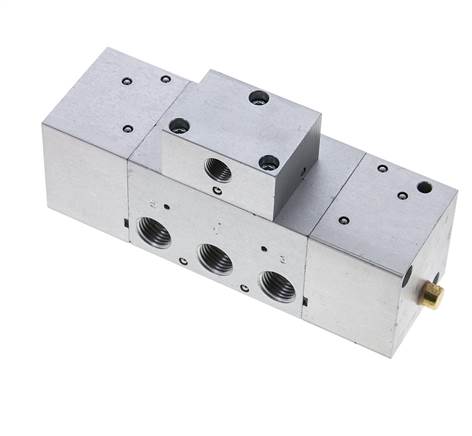

Item description
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
0 to +60 °C
Operating pressure:
2 to 10 bar (control pressure: 3 to 10 bar)
Flow:
1100 l/min
Media:
oiled and unoiled filtered compressed air
Function:
The valve switches following every incoming signal to the pilot entry (Flip-Flop). The last switching position remains even after complete venting of the valve.
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
0 to +60 °C
Operating pressure:
2 to 10 bar (control pressure: 3 to 10 bar)
Flow:
1100 l/min
Media:
oiled and unoiled filtered compressed air
Function:
The valve switches following every incoming signal to the pilot entry (Flip-Flop). The last switching position remains even after complete venting of the valve.
Properties
| Thread (3x) | G 1/4" |
| Thread exhaust air (2x) | G 1/4" |
| Thread control connection (1x) | G 1/8" |
| Min. signal duration [ms] | 10 |
Further information on VLL514
| Weight | 600 g / pcs |
| GTIN | 4050571722586 |
| Customs duty number | 84814090 |
Documents
- Catalogue page Atlas 9 (Page 780) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
