Item description
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Flow:
800 l/min
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Switch panel borehole:
Ø 30,5 mm
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Flow:
800 l/min
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Switch panel borehole:
Ø 30,5 mm
Properties

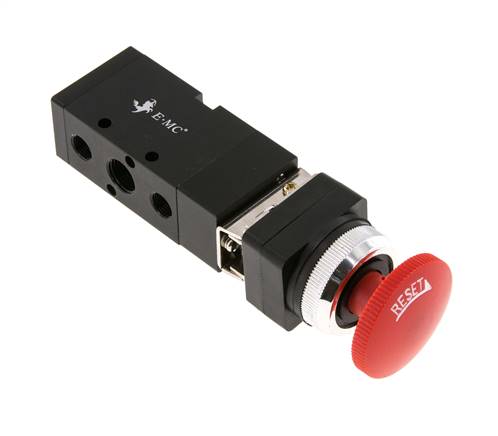

| function | 5/2-way |
| Actuation | Emergency stop button |
| colour | red |
| Thread | G 1/4" |
| Thread exhaust air | 2x G 1/8" |
Further information on M522-S3
| Weight | 230 g / pcs |
| GTIN | 4050571478926 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 724_725) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
