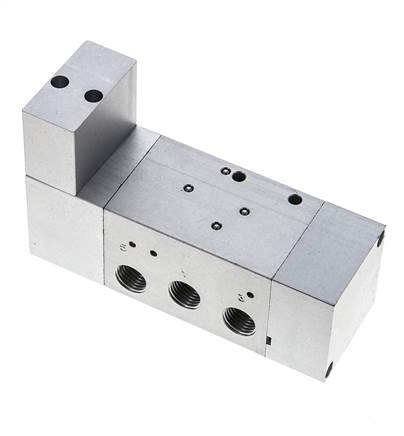

Item description
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
3 to 10 bar
Media:
oiled and unoiled filtered compressed air
Function:

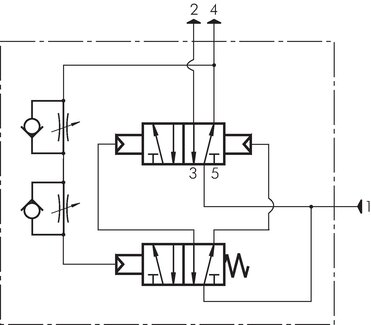

The oscillating valve generates oscillatory actions such as vibrations, tapping or dipping in connection with double acting cylinders. If input 1 is supplied with compressed air, the compressed air is alternately applied to outlets 4 and 2. The valve switches over into a time-pulse (Forward and return strokes) that can be adjusted using 2 adjustment screws. The speed of the controlled cylinder must be adjusted separately using the bi-directional flow control valves.
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
3 to 10 bar
Media:
oiled and unoiled filtered compressed air
Function:
The oscillating valve generates oscillatory actions such as vibrations, tapping or dipping in connection with double acting cylinders. If input 1 is supplied with compressed air, the compressed air is alternately applied to outlets 4 and 2. The valve switches over into a time-pulse (Forward and return strokes) that can be adjusted using 2 adjustment screws. The speed of the controlled cylinder must be adjusted separately using the bi-directional flow control valves.

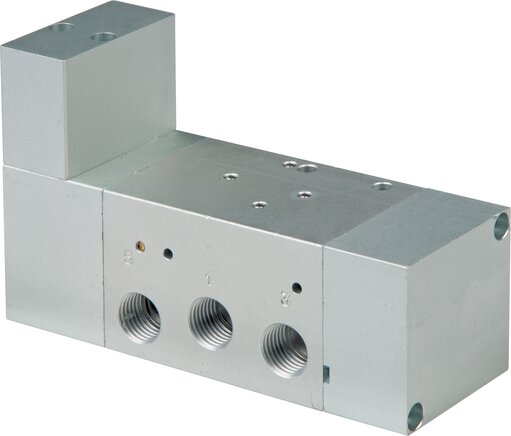

Properties

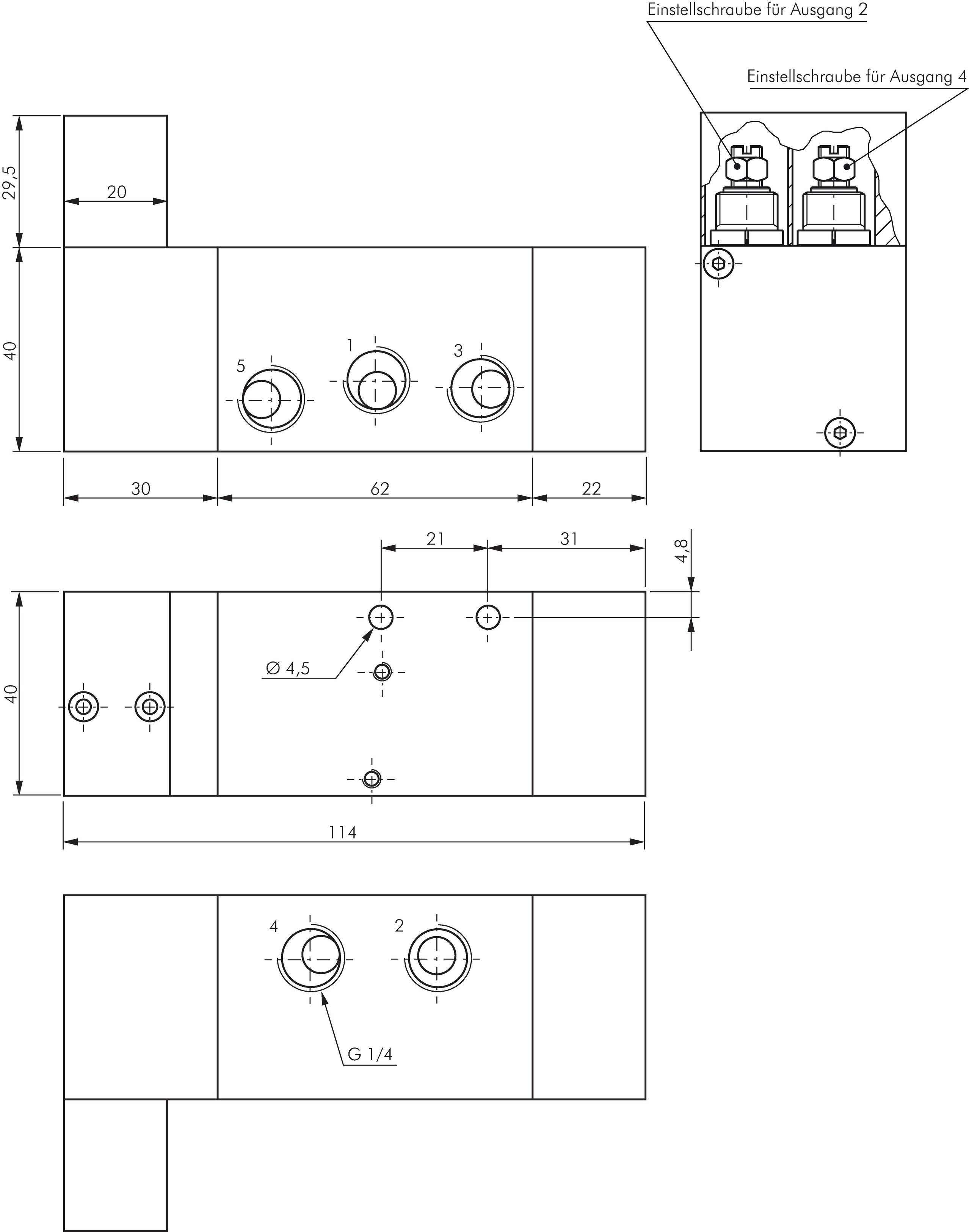

| Thread (3x) | G 1/4" |
| Thread exhaust air (2x) | G 1/4" |
| flow [l/min] | 1100 |
| adjustable cycle time [s] | 0 - 15 |
Further information on OS514B
| Weight | 550 g / pcs |
| GTIN | 4050571537500 |
| Customs duty number | 84814090 |
Documents
- Catalogue page Atlas 9 (Page 780) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
