2. Solenoid/Pneumatic/Manual/Mechanical Valves - Speed Controler - Exhaust Silencers
  3. Airtec solenoid valves
  4. 5/2-way solenoid impulse valves with external air connection, Series ME

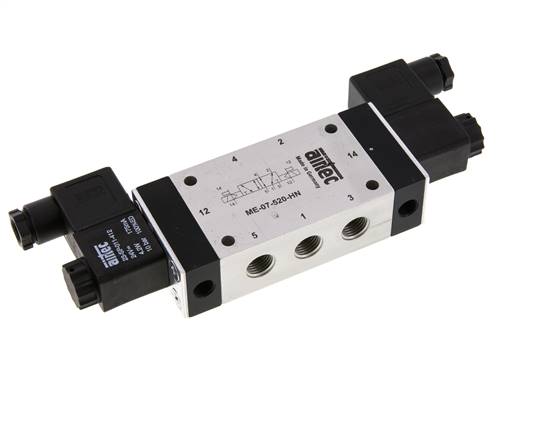

  5. ME 07520HN 24VAC

5/2-way solenoid pulse valve with external air connection, G 1/4"

Item number:

ME 07520HN 24VAC

All items of this group
€196.97 incl. VAT
pcs
Item description
Materials:
 Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR

Temperature range:
 -10 to +70 °C

Media:
 oiled and unoiled filtered compressed air

Control voltages:
 Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
 ± 10 %

Protection class:
 IP 65

Information:
 These valves are always supplied with a solenoid coil and a connector plug.

Structural shape solenoid coil:
 N (plug size 1)

Pressure input:
 Possible on every connection
Properties
Con­trol volt­age 24 V AC
Thread (3x) G 1/4"
Thread ex­haust air (2x) G 1/4"
Thread, pilot sup­ply (2x) G 1/8"
Nom­i­nal width [mm] 9
flow [l/min] 1580
Op­er­at­ing pres­sure [bar] 0 - 10
Con­trol pres­sure [bar] 2 - 10
Power con­sump­tion (AC) [VA] 4
Spare so­le­noid coil MAG N 24VAC
Further information on ME07520HN24VAC
Weight 600 g / pcs
GTIN 4050571484194
Customs duty number 84812090
Manufacturer Airtec (WEEE DE94696834 )
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
