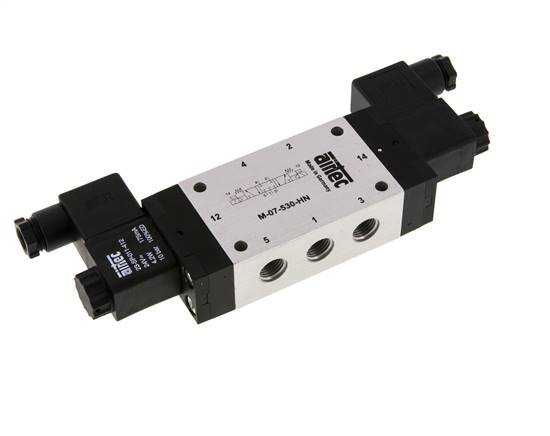

5/3-way solenoid valve, G 1/4", Centre position closed, 12 V DC
Item number:
M 07530HN 12V=
Item description
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 20 530, M 20 533: O, plug size 0)
Pressure input:
Connection 1
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 20 530, M 20 533: O, plug size 0)
Pressure input:
Connection 1
Properties
| Version | Standard |
| Control voltage | 12 V DC |
| function | Centre position closed |
| Thread (3x) | G 1/4" |
| Thread exhaust air (2x) | G 1/4" |
| Nominal width [mm] | 9 |
| flow [l/min] | 1300 |
| Operating pressure [bar] | 3 - 8 |
| Power consumption (DC) [W] | 4,2 |
| Spare solenoid coil | MAG N 12V= |
Further information on M07530HN12V=
| Weight | 550 g / pcs |
| GTIN | 4050571471613 |
| Customs duty number | 84812090 |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 752) (PDF)
- Data sheet (Print view)
*is supplied with 3 metres cable, **Supply from intrinsically safe circuits U <= 28 V, I <= 115 mA, P <= 1.6 W
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
