Quantity m

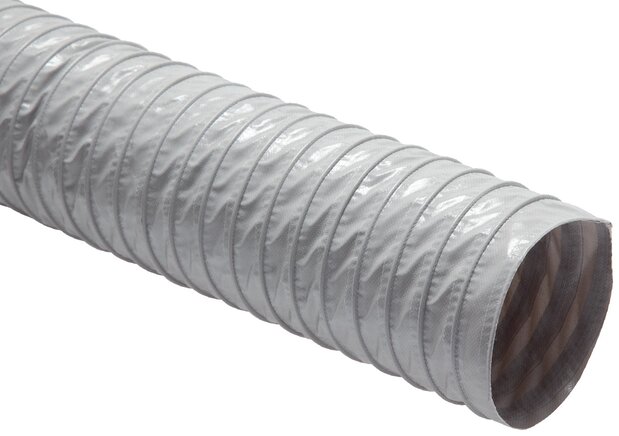

Item description
Materials:
PVC coated polyester mesh with a bronzed steel wire coil embedded in the wall
Temperature range:
-30 to +80 °C (temporarily +100 °C)
Wall thickness:
approx. 0,4 mm
Operating range:
Air conditioning and ventilation technology, welding gas extraction, solarium technology, household technology, good flexibility, self-extinguishing, elastic at low temperatures, good compressibility, UV-resistant
Approvals:
very low flammability according to UL 94 V-0
PVC coated polyester mesh with a bronzed steel wire coil embedded in the wall
Temperature range:
-30 to +80 °C (temporarily +100 °C)
Wall thickness:
approx. 0,4 mm
Operating range:
Air conditioning and ventilation technology, welding gas extraction, solarium technology, household technology, good flexibility, self-extinguishing, elastic at low temperatures, good compressibility, UV-resistant
Approvals:
very low flammability according to UL 94 V-0
Properties
| Hose diameter (inner) [mm] | 70 |
| Hose diameter (outer) [mm] | 74 |
| Min. bend radius [mm] | 49 |
| Operating pressure [bar] | -0,14 to 0,70 |
| Roll length [MTR] | 15 |
Further information on LUFLEX70
| Weight | 250 g / m |
| GTIN | 4050571468927 |
| Packing unit | 15 m |
| Customs duty number | 39173900 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 404) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
