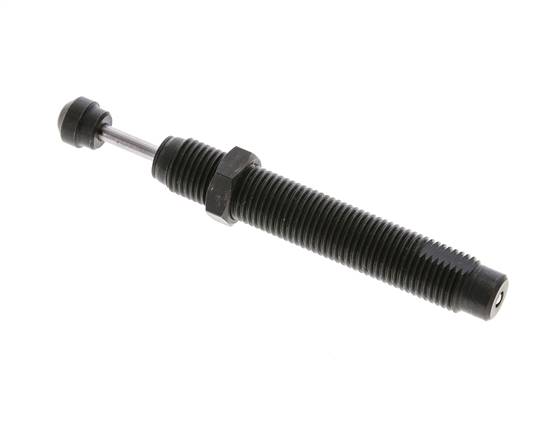

ACE shock absorber, M 14x1,5, self-adjusting, stroke 16 mm
Item number:
SC 190 EUM2
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
Properties
| Thread B | M 14x1,5 |
| Stroke [mm] | 16 |
| max. Energy consumption per stroke (W3) [Nm] | 25 |
| max. Energy consumption per hour (W4) [Nm] | 34000 |
| effective mass (me) [KGM] | 3,6 - 18 |
| Spring force [N] | 4 - 9 |
| A [mm] | 7,0 |
| D [mm] | 87,3 |
| E [mm] | 6,0 |
| G [mm] | 4,0 |
| I [mm] | 27,0 |
| J [mm] | 4,6 |
| K [mm] | 12 |
| SW1 [mm] | 12 |
| SW2 [mm] | 17 |
| Max. axial deviation* [°] | 5 |
| Clamping flange**** | MB 14 |
| Stop sleeve | AH 14 |
| Side load adapter*** | BV 14 SC |
| Locking nut | KM 14 |
| Temperature range [°C] | 0 to +66 |
Further information on SC190EUM2
| Weight | 80 g / pcs |
| GTIN | 4050571611217 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
Documents
- Catalogue page Atlas 9 (Page 902) (PDF)
- Data sheet (Print view)
*at higher axial deviation use side load adapters (BV), **construction type SC², Types SC 25 EUM, SC 75 EUM and SC 190 EUM are delivered without impact head
***The side load adapter can only be fitted on shock absorbers without an impact head, or if required, it must be dismantled, ****Types MB 5 SC2, MB 6 SC2, MB 8 SC2, MB 10 SC2 must be locked with nuts on the shock absorber
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
