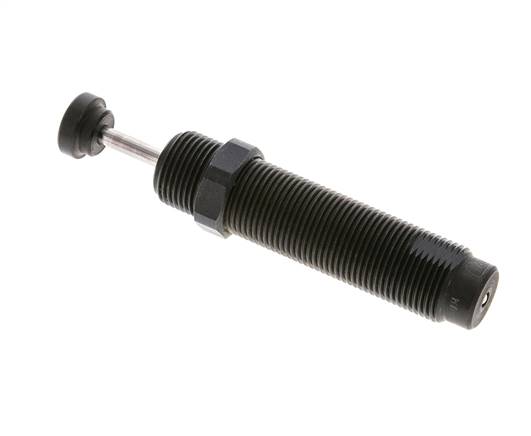

ACE shock absorber, M 20x1,5, self-adjusting, stroke 19 mm
Item number:
SC 300 EUM1
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
Properties
| Thread B | M 20x1,5 |
| Stroke [mm] | 19 |
| max. Energy consumption per stroke (W3) [Nm] | 33 |
| max. Energy consumption per hour (W4) [Nm] | 45000 |
| effective mass (me) [KGM] | 1,4 - 8 |
| Spring force [N] | 5 - 10 |
| A [mm] | 7,0 |
| D [mm] | 87,4 |
| E [mm] | 8,0 |
| G [mm] | 4,8 |
| I [mm] | 30,0 |
| J [mm] | 4,6 |
| K [mm] | 17 |
| SW1 [mm] | 18 |
| SW2 [mm] | 23 |
| Max. axial deviation* [°] | 5 |
| Clamping flange**** | MB 20 |
| Stop sleeve | AH 20 |
| Side load adapter*** | BV 20 SC |
| Locking nut | KM 20 |
| Temperature range [°C] | 0 to +66 |
Further information on SC300EUM1
| Weight | 175 g / pcs |
| GTIN | 4050571611361 |
| Tariff No. | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
