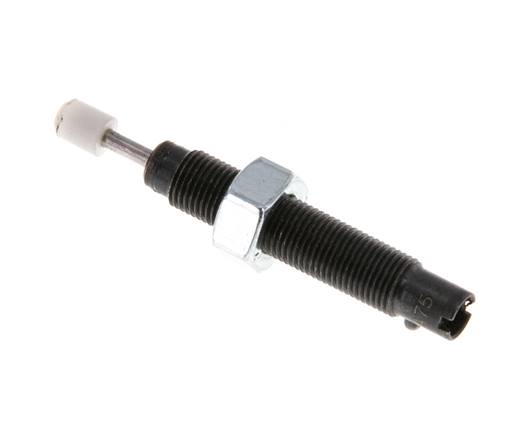

ACE shock absorber, M 5x0,5, self-adjusting, stroke 4,1 mm
Item number:
MC 5 EUM2B
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10 to +66 °C
Stroke speed:
0,15 to 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10 to +66 °C
Stroke speed:
0,15 to 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
Properties
| Thread B | M 5x0,5 |
| Stroke [mm] | 4,1 |
| max. Energy consumption per stroke (W3) [Nm] | 0,68 |
| max. Energy consumption per hour (W4) [Nm] | 2040 |
| effective mass (me) [KGM] | 3,8 - 10,8 |
| Spring force [N] | 1 - 5 |
| A [mm] | 4,6 |
| E [mm] | 28,0 |
| F [mm] | 4,0 |
| G [mm] | 1,5 |
| I [mm] | 8,1 |
| J [mm] | 1 |
| K [mm] | 3,3 |
| SW2 [mm] | 8 |
| Max. axial deviation* [°] | 2 |
| clamping flange | MB 5 SC2 |
| Stop sleeve | AH 5 |
| Locking nut | KM 5 |
Further information on MC5EUM2B
| Weight | 3,7 g / pcs |
| GTIN | 4050571481827 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
Documents
- Catalogue page Atlas 9 (Page 899_900) (PDF)
- Data sheet (Print view)
*at higher axial deviations use side load adapters (Type BV)
***The side load adapter can only be fitted on shock absorbers without an impact head, or if required, it must be dismantled.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
