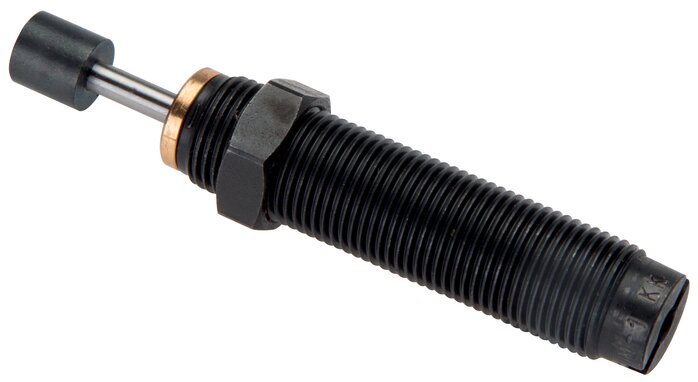

ACE shock absorber, M 8x1, self-adjusting, stroke 8 mm
Item number:
MC 30 EUM2
Item description
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10 to +66 °C
Stroke speed:
0,15 to 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10 to +66 °C
Stroke speed:
0,15 to 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
Properties
| Thread B | M 8x1 |
| Stroke [mm] | 8 |
| max. Energy consumption per stroke (W3) [Nm] | 3,5 |
| max. Energy consumption per hour (W4) [Nm] | 5600 |
| effective mass (me) [KGM] | 1,8 - 5,4 |
| Spring force [N] | 2 - 6 |
| A [mm] | 4,1 |
| E [mm] | 40,9 |
| F [mm] | 3,0 |
| G [mm] | 2,5 |
| I [mm] | 13,1 |
| J [mm] | 2 |
| K [mm] | 6,4 |
| SW2 [mm] | 10 |
| Max. axial deviation* [°] | 2 |
| clamping flange | MB 8 SC2 |
| Stop sleeve | AH 8 |
| Side load adapter** | BV 8 |
| Locking nut | KM 8 |
Further information on MC30EUM2
| Weight | 11 g / pcs |
| GTIN | 4050571481322 |
| Tariff No. | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
Documents
*at higher axial deviations use side load adapters (Type BV)
***The side load adapter can only be fitted on shock absorbers without an impact head, or if required, it must be dismantled.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
