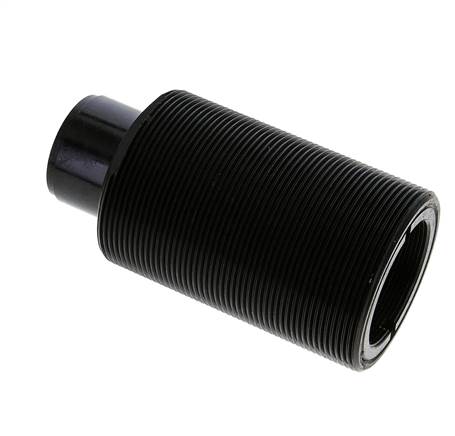

ACE side load adapter, M 45x1,5, for MA 4525..., MC 4525..., SC 4525...
Item number:
BV 4525
Item description
Note:
The side load adapter can only be fitted to shock absorbers without impact heads. This must if nec. be removed.
The side load adapter can only be fitted to shock absorbers without impact heads. This must if nec. be removed.
Properties
| Suitable for shock absorbers | MA 4525..., MC 4525..., SC 4525... |
| Thread B | M 45x1,5 |
| A [mm] | M 64x2 |
| E [mm] | 40 |
| H [mm] | 100 |
| I [mm] | 129,0 |
| L [mm] | 29,0 |
Further information on BV4525
| Weight | 1,5 kg / pcs |
| GTIN | 4050571229344 |
| Customs duty number | 84879059 |
| RoHS compliant | Yes |
| Manufacturer | ACE |
Documents
- Catalogue page Atlas 9 (Page 903) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
