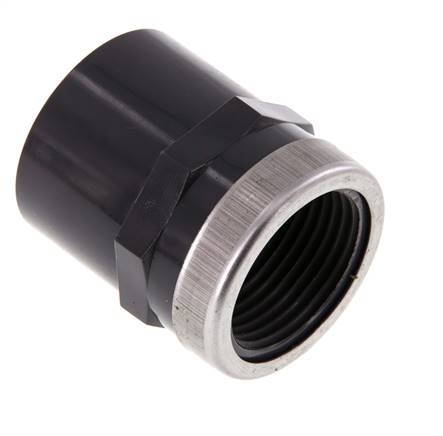

Adhesive threaded socket, PVC-U, 32mmxRp 1" female thread
Item number:
PVCMUG 3210
Item description
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Note:
•Reinforcement ring rust free
•V2A),
•connection for plastic or metal screw thread,
•do not use PVC-U damaging thread sealing paste!
Warning:
Not suitable for compressed air or other gases under pressure!
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Note:
•Reinforcement ring rust free
•V2A),
•connection for plastic or metal screw thread,
•do not use PVC-U damaging thread sealing paste!
Warning:
Not suitable for compressed air or other gases under pressure!
Properties
| Inner diameter d [mm] | 32 |
| Female thread G | Rp 1" |
| Hexagon S [mm] | 46 |
| Length L [mm] | 49 |
Further information on PVCMUG3210
| Weight | 46 g / pcs |
| GTIN | 4050571558185 |
| Customs duty number | 39174000 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 457) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*without external reinforcement, connection only for plastic thread
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
