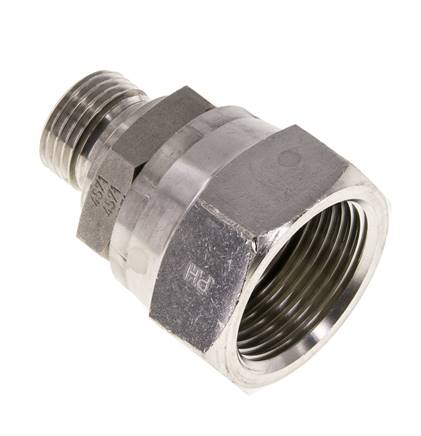

Adjustab. Screwed connect. UN 1-5/16"-12(FT)-G 1/2"(MT)
Item number:
EV 1 5/16-12 ES
Item description
Scope of delivery:
Screw connection incl. HD-seal (Type 1.4571: with captive soft seal)
Screw connection incl. HD-seal (Type 1.4571: with captive soft seal)
Properties
| Material | 1.4571 |
| Thread internal | UN 1-5/16"-12 |
| Screw-in thread | G 1/2" |
| PN* [bar] | 170 |
Further information on EV15/16-12ES
| Weight | 220 g / pcs |
| GTIN | 4050571870386 |
| Customs duty number | 73071990 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 222) (PDF)
- Data sheet (Print view)
*the safety factor reached in tests with hydraulic oil was four-times, please ask in individual cases
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
