Item description
Suitable:

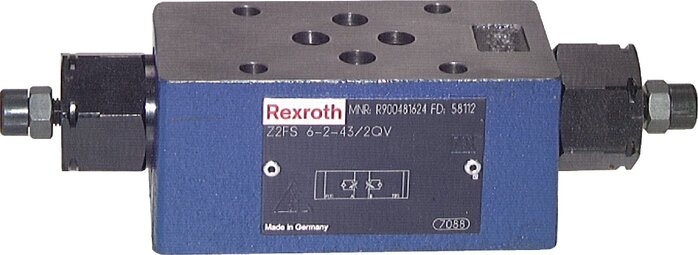

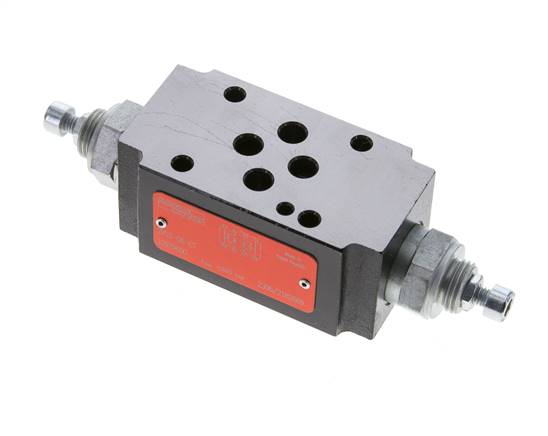

NG 6 intermediate plate valves are used in combination with NG 6 directional valves. The intermediate plate valves are fitted between the directional valves and the connection plate. Each intermediate plate has a specific function, they control the strength, movement and speed of a hydraulic cylinder or a hydraulic motor.
Materials:
Body: Spheroidal cast iron, internal parts: Steel, seals: NBR
Media:
Hydraulic oils on the basis of mineral oil (viscosity: Bosch Rexroth: 10 - 500 mm²/s, alternatively: 20 - 400 mm²/s)
Operating pressure:
0 - 315 bar (alternatively: 0 - 320 bar)
Nominal flow:
up to approx. 60 l/min depending on the valve used (request pressure loss curves if required), we recommend usage up to approx. 40 l/min
Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6 / ISO 4401-03 (NG 6) / CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
Scope of delivery:
Valve including seals, without screws.
NG 6 intermediate plate valves are used in combination with NG 6 directional valves. The intermediate plate valves are fitted between the directional valves and the connection plate. Each intermediate plate has a specific function, they control the strength, movement and speed of a hydraulic cylinder or a hydraulic motor.
Materials:
Body: Spheroidal cast iron, internal parts: Steel, seals: NBR
Media:
Hydraulic oils on the basis of mineral oil (viscosity: Bosch Rexroth: 10 - 500 mm²/s, alternatively: 20 - 400 mm²/s)
Operating pressure:
0 - 315 bar (alternatively: 0 - 320 bar)
Nominal flow:
up to approx. 60 l/min depending on the valve used (request pressure loss curves if required), we recommend usage up to approx. 40 l/min
Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6 / ISO 4401-03 (NG 6) / CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
Scope of delivery:
Valve including seals, without screws.
Properties
| Version | Alternatively |
| function | One-way flow control** |
| affected flow rate | A & B |
| Clamping length [mm] | 40 |
| Temperature range [°C] | -30 to +80 |
Further information on LA-Z2FS6AB
| Weight | 1 kg / pcs |
| GTIN | 4050571460440 |
| Customs duty number | 84812010 |
Documents
- Catalogue page Atlas 9 (Page 811) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*our operating recommendation, **the one-way flow control can be changed by rotating, ***Seals from FKM
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
