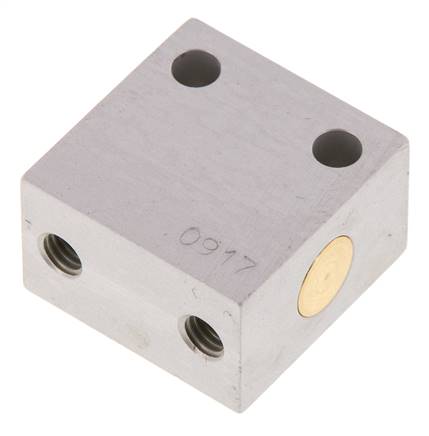

AND valve, M 5, Precision
{{ $t('shop.all.artikelnummer') }}:
AN 25
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Function:

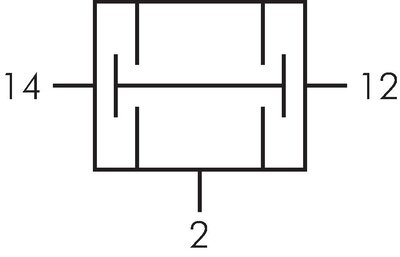

There is a signal present at output 2 only if there is a signal present simultaneously at inputs 12 and 14. If there are different pressures, the lowermost pressure is conducted through to output 2. The AND valve, being a passive element, does not have its own venting. Upon deletion of one or both input signals, deaeration takes place through the upstream valves.
Warning:
An AND valve does not replace a two hand control block!
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Function:
There is a signal present at output 2 only if there is a signal present simultaneously at inputs 12 and 14. If there are different pressures, the lowermost pressure is conducted through to output 2. The AND valve, being a passive element, does not have its own venting. Upon deletion of one or both input signals, deaeration takes place through the upstream valves.
Warning:
An AND valve does not replace a two hand control block!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Precision |
| Thread (3x) | M 5 |
| Nominal width [mm] | 3,2 |
| flow [l/min] | 160 |
| Operating pressure [bar] | -0.95 to 10.00 |
| Temperature range [°C] | -10 to +70 |
{{ $t('shop.display.artikel.info') }} AN25
| {{ $t('shop.all.gewicht') }} | 26 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571219420 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Airtec |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 782) atlas9_seiten/782.pdf
3D CAD file (volume model) protected/cad/3d/70001/an25#1023.stp
UND valves: Explanation of use and function
3D CAD file (volume model) protected/cad/3d/70001/an25#1023.stp
UND valves: Explanation of use and function
