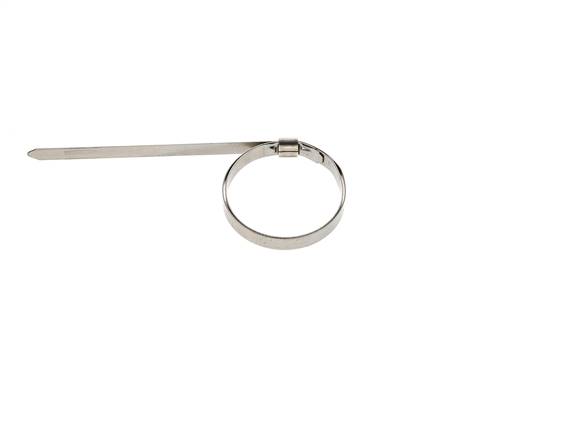

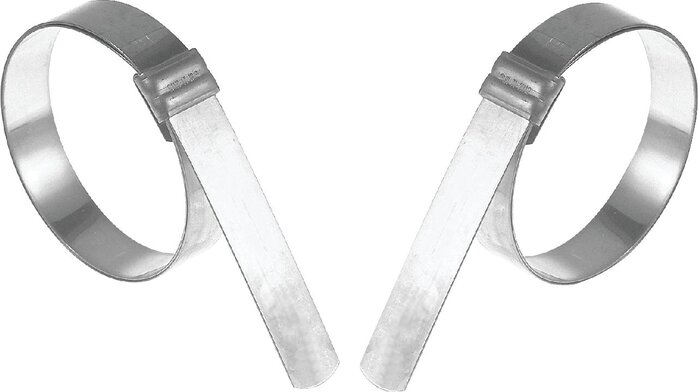

Item description
Application:
for high loading, e.g. hose connections
Assembly tool:
C001 & J001, C001 & J050, C003 & J050
Materials:
rust-free stainless steel AISI 201 (1.4372) with fully rounded edges and high tensile strength (about 25% higher than 1.4401 or AISI 316)
Advantages:
•patented, gap-free design of interior surface avoids leaks especially in thin walled hoses,
•high vibration resistance,
•easy and quick manual processing - closed by means of a simple movement,
•semi-automatic and automatic processing is possible,
•easy to store because small clamps can be manufactured from large clamps
for high loading, e.g. hose connections
Assembly tool:
C001 & J001, C001 & J050, C003 & J050
Materials:
rust-free stainless steel AISI 201 (1.4372) with fully rounded edges and high tensile strength (about 25% higher than 1.4401 or AISI 316)
Advantages:
•patented, gap-free design of interior surface avoids leaks especially in thin walled hoses,
•high vibration resistance,
•easy and quick manual processing - closed by means of a simple movement,
•semi-automatic and automatic processing is possible,
•easy to store because small clamps can be manufactured from large clamps
Properties
| Width [mm] | 6,4 (1/4") |
| Thickness [mm] | 0,51 |
| Clamps Ø internal max. [mm] | 38,1 |
| Tensile strength at break [N] | 2.225 |
Further information on JS252
| Weight | 10 g / pcs |
| GTIN | 4050571390426 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
| Manufacturer | Band-It |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 423) (PDF)
- Data sheet (Print view)
*only for purposes of comparison - material of different providers
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
