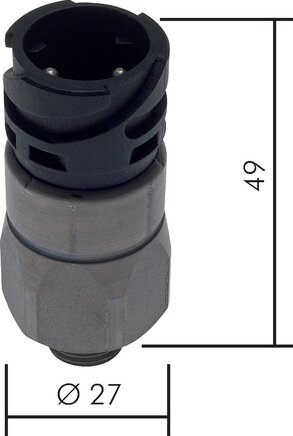

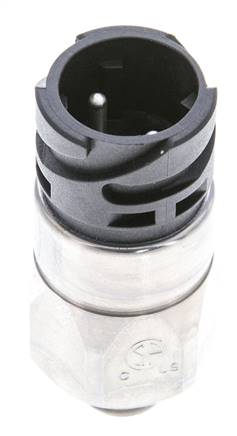

Bayonet pressure switch 1 to 10 bar (Opener (NC)), G 1/4"
Item number:
DRSIPO 10
Item description
Materials:
Body: zinc plated steel, seals / diaphragms: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 25 % of the value that has been set
Protection class:
IP 67
Electrical connection:
Bayonet coupling DIN 72585 / ISO 15170 (contact size 2.5 mm, 4-pole)
Media:
Hydraulic oil, machine oil, heating oil, air, water (only type DRSIP)
Advantages:
•ideal for outdoor use in construction or farm equipment, as a protection class of IP 67 is achieved through the use of bayonet couplings.
Body: zinc plated steel, seals / diaphragms: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 25 % of the value that has been set
Protection class:
IP 67
Electrical connection:
Bayonet coupling DIN 72585 / ISO 15170 (contact size 2.5 mm, 4-pole)
Media:
Hydraulic oil, machine oil, heating oil, air, water (only type DRSIP)
Advantages:
•ideal for outdoor use in construction or farm equipment, as a protection class of IP 67 is achieved through the use of bayonet couplings.
Properties
| Version | Pressure switches |
| Switch type | NC contact |
| Setting range [bar] | 1 - 10 |
| External thread | G 1/4" |
| Safe at overpressure up to [bar] | 300 |
| Switch capacity | 42 V / 100 VA |
| Operating voltage | 0 - 42 V (AC/DC) |
| Connector (straight) | DRSIP STECKDOSE |
| Connector (angled) | DRSIP STECKDOSE 90 |
Further information on DRSIPO10
| Weight | 80 g / pcs |
| GTIN | 4050571272890 |
| Customs duty number | 90268080 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 687) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*for 30 V DC, **controller using pistons, seal: UR (Type DRSIPS 150 and DRSIPO 150: NBR)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
