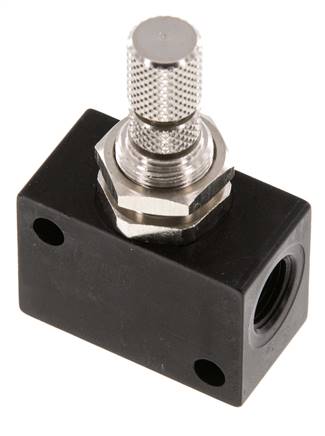

Item description
Materials:
Body: Anodised aluminium, nickel-plated brass, seals: NBR
Temperature range:
0 to +60 °C
Operating pressure:
2 to 10 bar
Scope of delivery:
Valve incl. fastening nut
Body: Anodised aluminium, nickel-plated brass, seals: NBR
Temperature range:
0 to +60 °C
Operating pressure:
2 to 10 bar
Scope of delivery:
Valve incl. fastening nut
Properties
| function | one-way flow control |
| Thread | G 1/8" |
| Thread for panel mounting | M 12x0,75 |
| max. sheet thickness [mm] | 3 |
| Flow regulated [l/min] | 5 - 80 |
| Flow regulated [l/min] | 325 |
| Length L [mm] | 32 |
Further information on DRVE18
| Weight | 50 g / pcs |
| GTIN | 4050571274351 |
| Customs duty number | 84799070 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 800) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
