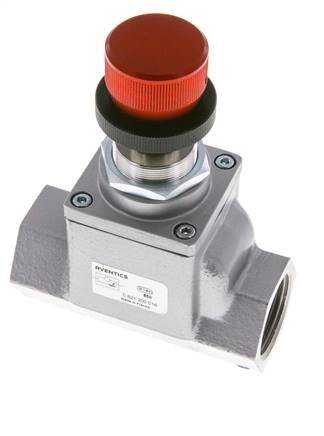

Item description
Materials:
Body: Anodised aluminium, brass, seals: NBR (G 1": Body aluminium painted, galvanised steel, seals: NBR)
Operating pressure:
0,5 to 10 bar
Body: Anodised aluminium, brass, seals: NBR (G 1": Body aluminium painted, galvanised steel, seals: NBR)
Operating pressure:
0,5 to 10 bar
Properties
| Thread | G 1" |
| Thread for panel mounting | M 30x1 |
| max. panel thickness [mm] | 6 |
| Flow regulated [l/min] | 1 - 5500 |
| Flow regulated [l/min] | 8830 |
| Temperature range [°C] | 0 to +80 |

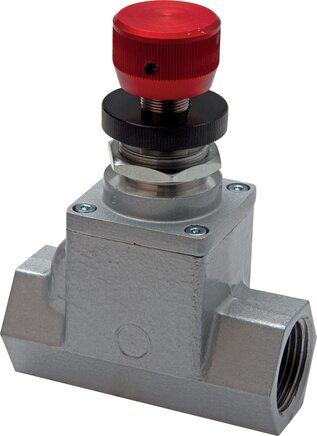

Further information on DR10
| Weight | 600 g / pcs |
| GTIN | 4050571264765 |
| Customs duty number | 84812090 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 801) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
