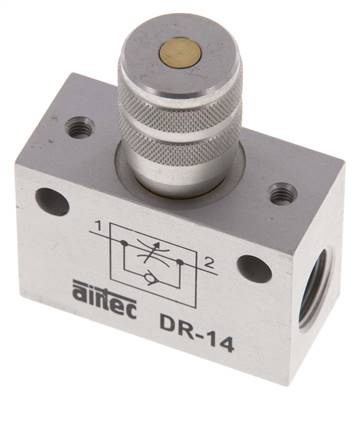

Item description
Materials:
Body: Anodised aluminium, brass, seals: NBR (G 1": Body aluminium painted, galvanised steel, seals: NBR)
Operating pressure:
0,5 to 10 bar
Body: Anodised aluminium, brass, seals: NBR (G 1": Body aluminium painted, galvanised steel, seals: NBR)
Operating pressure:
0,5 to 10 bar
Properties
| Thread | G 1/4" |
| Fastening threads top | M 4 |
| Flow regulated [l/min] | 50 - 600 |
| Flow regulated [l/min] | 1300 |
| Temperature range [°C] | -10 to +70 |
Further information on DR14
| Weight | 95 g / pcs |
| GTIN | 4050571265274 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 801) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
