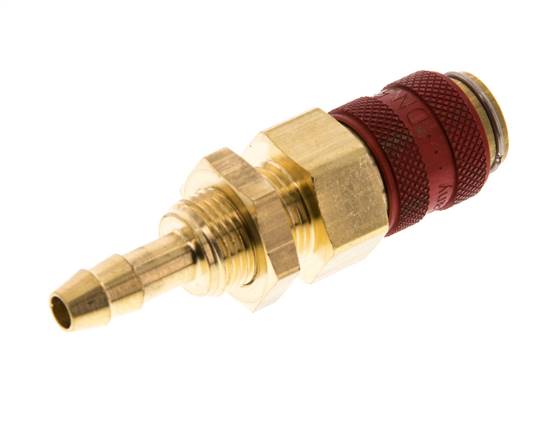

Bulkhead coupling socket (NW5) 6 (1/4")mm hose, Brass
Item number:
KDSS 6 NW5-RO
Item description
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)
Optional:
Can be used for plug shut-off on both sides -BA, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Flow*:
510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)
Optional:
Can be used for plug shut-off on both sides -BA, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
Properties
| Material | Brass |
| Hose diameter (inner) [mm] | 6 (1/4") |
| Can be used for plug shut-off on both sides | no |
| Version | red sliding sleeve |
| A | M 12x1 |
| Emax [mm] | 10 |
| Temperature range [°C] | -20 to +100 |
Further information on KDSS6NW5-RO
| Weight | 40 g / pcs |
| GTIN | 4050571401672 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 280) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
