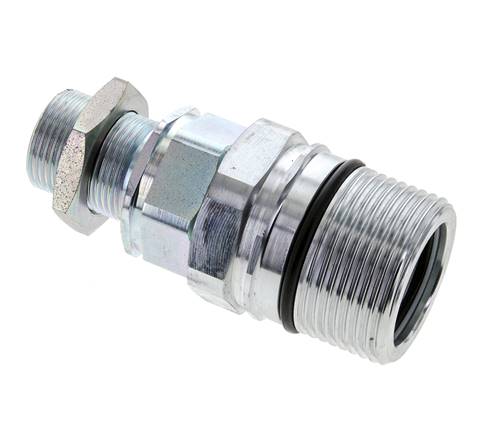

Bulkhead screw coupling, Sleeve Size.6, 22 L (M30x2)
Item number:
562022.6 *
Item description
Function:
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max. 50 bar under pressure
Materials:
zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Advantages:
•secure against pressure thrusts and pressure vibrations,
•streamlining design of the flow rate range
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal. Can be coupled up to max. 50 bar under pressure
Materials:
zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Advantages:
•secure against pressure thrusts and pressure vibrations,
•streamlining design of the flow rate range
Properties
| Version | Sleeve |
| Model series | light model series |
| Tube connection | 22 L (M30x2) |
| A | M 48x3 |
| B [mm] | 55 |
| DN (ISO) [mm] | 25 |
| size | 6 |
| max. bulkhead thickness [mm] | 15 |
| Bulkhead thread | M 30x2 |
| PN [bar] | 160 |
Further information on 562022.6
| Weight | 850 g / pcs |
| GTIN | 4050571203931 |
| Customs duty number | 84812010 |
Documents
- Catalogue page Atlas 9 (Page 329) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*not standardised following ISO 14541
