Item description
Description:

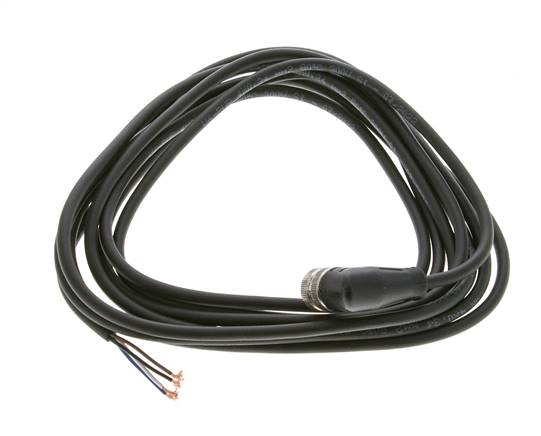

Pre-assembled connecting cables with M 12 female connector (M 12x1 female thread to DIN EN 61076-2-101, A-coded, 5-pin) on one end and loose cable ends or M 12 male connector (M 12x1 male thread to DIN EN 61076-2-101, A-coded, 5-pin) on the other
Temperature range:
-25 to +90 °C
Voltage:
max. 60 V AC/DC, max. 4 A
Protection class:
IP 67
Cable:
PUR cable, 4 or 5x 0.34 mm² (only for static applications)
Cable layout:
Pin 1 - brown, Pin 2 - white, Pin 3 - blue, Pin 4 - black, Pin 5 - grey (only present if 5-core)
Suitable:
These cables are preferred for use for connecting electronic pressure switches, inductive proximity switches, photo switches or as power supplies for valve clusters / valve terminals. The 5-pole socket fits M 12 plugs with 5 and 4 pins.
Pre-assembled connecting cables with M 12 female connector (M 12x1 female thread to DIN EN 61076-2-101, A-coded, 5-pin) on one end and loose cable ends or M 12 male connector (M 12x1 male thread to DIN EN 61076-2-101, A-coded, 5-pin) on the other
Temperature range:
-25 to +90 °C
Voltage:
max. 60 V AC/DC, max. 4 A
Protection class:
IP 67
Cable:
PUR cable, 4 or 5x 0.34 mm² (only for static applications)
Cable layout:
Pin 1 - brown, Pin 2 - white, Pin 3 - blue, Pin 4 - black, Pin 5 - grey (only present if 5-core)
Suitable:
These cables are preferred for use for connecting electronic pressure switches, inductive proximity switches, photo switches or as power supplies for valve clusters / valve terminals. The 5-pole socket fits M 12 plugs with 5 and 4 pins.
Properties
| Design | angled |
| Cable end 1 | M 12 socket (A-coded) |
| Cable end 2 | 4 loose cable ends (Pin 1 to 4) |
| Cable length [MTR] | 3 |
| Number of cores | 4 |
Further information on KABM123W
| Weight | 100 g / pcs |
| GTIN | 4050571885236 |
| Customs duty number | 85369010 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 893) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
