Immediately available

13,70 €

(16,30 € incl. VAT)
Immediately available from the warehouse
Technical data
Design angled
Version 5-wire assigned (pin 1 to pin 5)
Cable length [MTR] 3
Further information on KABM1253W
Weight 120 g / Pcs
GTIN 4050571887308
Customs duty number 85369010

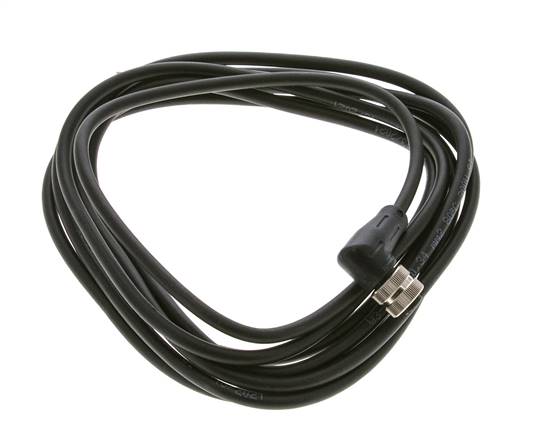

Description - Cable with M12 coupling, 4-wire, 3 m, angled

Description:
Prefabricated connection lines with 5 pin M 12 connection socket (female threads) on one side and 4 loose cable ends on the other side.

Temperature range:
-25°C bis +90°C

Voltage:
max. 250 V AC/DC

Protection class:
IP 67

Cable:
PUR cable, 4 or 5 x 0,34 mm²

Cable layout:
PIN 1 - brown, PIN 2 - white, PIN 3 - blue, PIN 4 - black, PIN 5 - grey (only assigned with 5-wire)

Suitable:
These cables are preferentially used for the connection of electronic pressure switches, inductive proximity switches or photoswitches.

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
