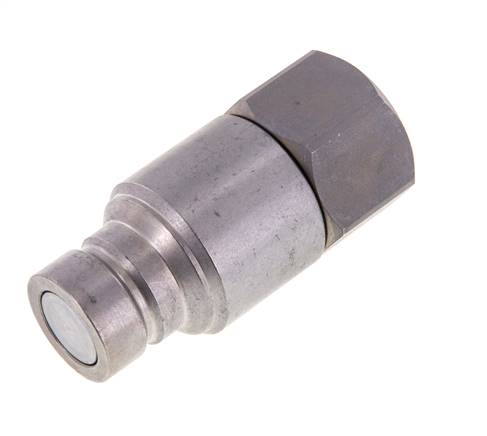

CEJN flat face coupling ISO 16028, Plug Size.4, G 3/4"
Item number:
FFS 34-C
Item description
Materials:
zinc plated steel, seal: NBR
Temperature range:
-30 to +100 °C
Advantages:
•No dirt can enter, because the clutch can be easily wiped clean on the smooth surface "flat face",
•Axial forces can be well absorbed by the design of this clutch, particularly suitable for use on hydraulic hoses,
•Drip-free disconnection,
•Single-handed operation,
•Safety lock.
zinc plated steel, seal: NBR
Temperature range:
-30 to +100 °C
Advantages:
•No dirt can enter, because the clutch can be easily wiped clean on the smooth surface "flat face",
•Axial forces can be well absorbed by the design of this clutch, particularly suitable for use on hydraulic hoses,
•Drip-free disconnection,
•Single-handed operation,
•Safety lock.
Properties
| Version | Plug |
| Thread internal | G 3/4" |
| A [mm] | 30,0 |
| B [mm] | 48 |
| DN (ISO) [mm] | 19 |
| size | 4 |
| PN [bar] | 400 |
Further information on FFS34-C
| Weight | 500 g / pcs |
| GTIN | 4050571296841 |
| Customs duty number | 84812010 |
| Manufacturer | Cejn |
Documents
- Catalogue page Atlas 9 (Page 324) (PDF)
- 3D CAD file (surface model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
