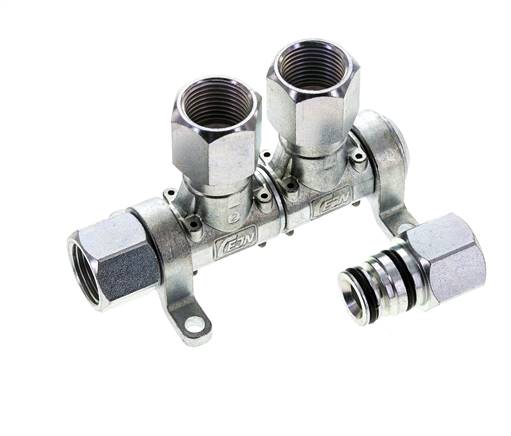

CEJN Multilink 2-way distributor, with female thread G 1/2" as outlet
Item number:
MLIG 212
Item description
Description:
Compressed air distribution system assembled completely with individually pivotable standard couplings NW 7.2. An optional thread step (G 1/2") that can be assembled for interlinking several blocks is included in the scope of supply.
Materials:
Bodies: Zinc plated steel, zinc, seal: NBR
Temperature range:
-20°C to max. +100°C (Safety coupling max. +80°C)
Operating pressure:
0 to 16 bar
Media:
Compressed air
Compressed air distribution system assembled completely with individually pivotable standard couplings NW 7.2. An optional thread step (G 1/2") that can be assembled for interlinking several blocks is included in the scope of supply.
Materials:
Bodies: Zinc plated steel, zinc, seal: NBR
Temperature range:
-20°C to max. +100°C (Safety coupling max. +80°C)
Operating pressure:
0 to 16 bar
Media:
Compressed air
Properties
| Version | with female thread G 1/2" as outlet |
| Description | 2-way distributor |
| Female thread | G 1/2" |
| Temperature range [°C] | -20 to +100 |
Further information on MLIG212
| Weight | 500 g / pcs |
| GTIN | 4050571492601 |
| Customs duty number | 84812090 |
| Manufacturer | Cejn |
Documents
- Catalogue page Atlas 9 (Page 293) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
