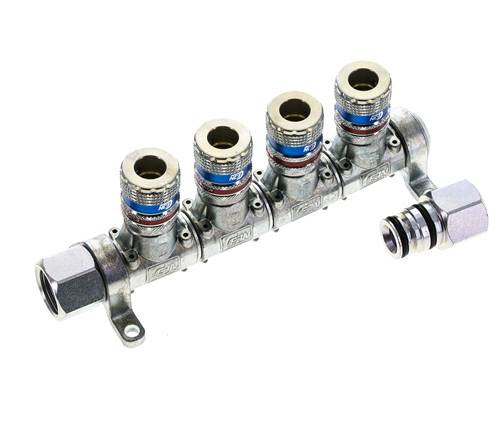

CEJN Multilink 4-way distributor, With eSafe safety coupling as outlet

Item number:

MLKDGSI 412

All items of this group
€310.76 incl. VAT
pcs
Item description
Description:
 Compressed air distribution system assembled completely with individually pivotable standard couplings NW 7.2. An optional thread step (G 1/2") that can be assembled for interlinking several blocks is included in the scope of supply.

Materials:
 Bodies: Zinc plated steel, zinc, seal: NBR

Temperature range:
 -20°C to max. +100°C (Safety coupling max. +80°C)

Operating pressure:
 0 to 16 bar

Media:
 Compressed air
Properties
Ver­sion With eSafe safety cou­pling as out­let
De­scrip­tion 4-way dis­trib­u­tor
Fe­male thread G 1/2"
ac­tual nom­i­nal width [mm] 7,6
Tem­per­a­ture range [°C] -20 to +80
Further information on MLKDGSI412
Weight 800 g / pcs
GTIN 4050571492724
Customs duty number 84812090
Manufacturer Cejn
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
