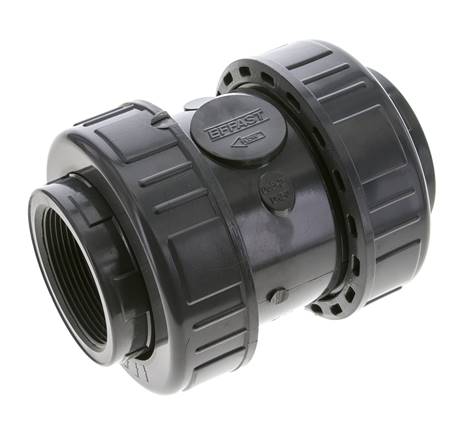

Item description
Materials:
Body: PVC-U, spring: 1.4310
Temperature range:
0 to +60 °C
Opening pressure:
max. 0,012 bar
Advantages:
•can be radially assembled or disassembled,
•optimum flow properties
Special quality features:
Check valve, 100% tested
Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread
Warning:
Not suitable for compressed air or other gases under pressure!
Body: PVC-U, spring: 1.4310
Temperature range:
0 to +60 °C
Opening pressure:
max. 0,012 bar
Advantages:
•can be radially assembled or disassembled,
•optimum flow properties
Special quality features:
Check valve, 100% tested
Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread
Warning:
Not suitable for compressed air or other gases under pressure!
Properties
| Seals | EPDM |
| Female thread G | Rp 2" |
| L [mm] | 150 |
| Flow* [l/min] | 1007 |
| PN [bar] | 0 - 16 |
| Z [mm] | 99 |
Further information on RUCK20PVCEPDM
| Weight | 1.000 g / pcs |
| GTIN | 4050571607593 |
| Customs duty number | 84813099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 526) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*applies to water and 1 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
