Compact compensator, DN100-PN16 (DIN/EN) (max. 10 bar), EPDM
Item number:
KOMFLK 100
Item description
Version:

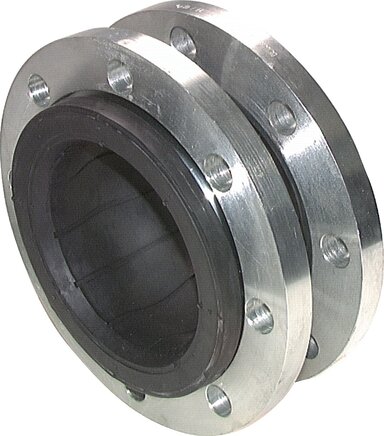

Flat corrugated, compression-moulded rubber bellows, highly elastic with synthetic fibre pressure carrier (high-temperature version: steel cord) and wire-reinforced rubber flange collar (self-sealing), swivelling steel flanges on both sides
Equalising capacity:
axial (compression/extension), lateral (lateral offset), angular (angular deviation)
Materials:
Bellows: EPDM (hot water resistant), flange: RSt 37.2 galvanised zinc plated
Temperature range:
-10 to +105 °C (dependent on operating pressure)
Operating pressure:
10 bar (up to +90°C), 8 bar (up to +105°C), burst pressure 45 bar (For intermittent loads, the max. operating pressure must be set 30% lower)
Flat corrugated, compression-moulded rubber bellows, highly elastic with synthetic fibre pressure carrier (high-temperature version: steel cord) and wire-reinforced rubber flange collar (self-sealing), swivelling steel flanges on both sides
Equalising capacity:
axial (compression/extension), lateral (lateral offset), angular (angular deviation)
Materials:
Bellows: EPDM (hot water resistant), flange: RSt 37.2 galvanised zinc plated
Temperature range:
-10 to +105 °C (dependent on operating pressure)
Operating pressure:
10 bar (up to +90°C), 8 bar (up to +105°C), burst pressure 45 bar (For intermittent loads, the max. operating pressure must be set 30% lower)
Properties
| Flange connection | DN100-PN16 (DIN/EN) |
| DN [mm] | 100 |

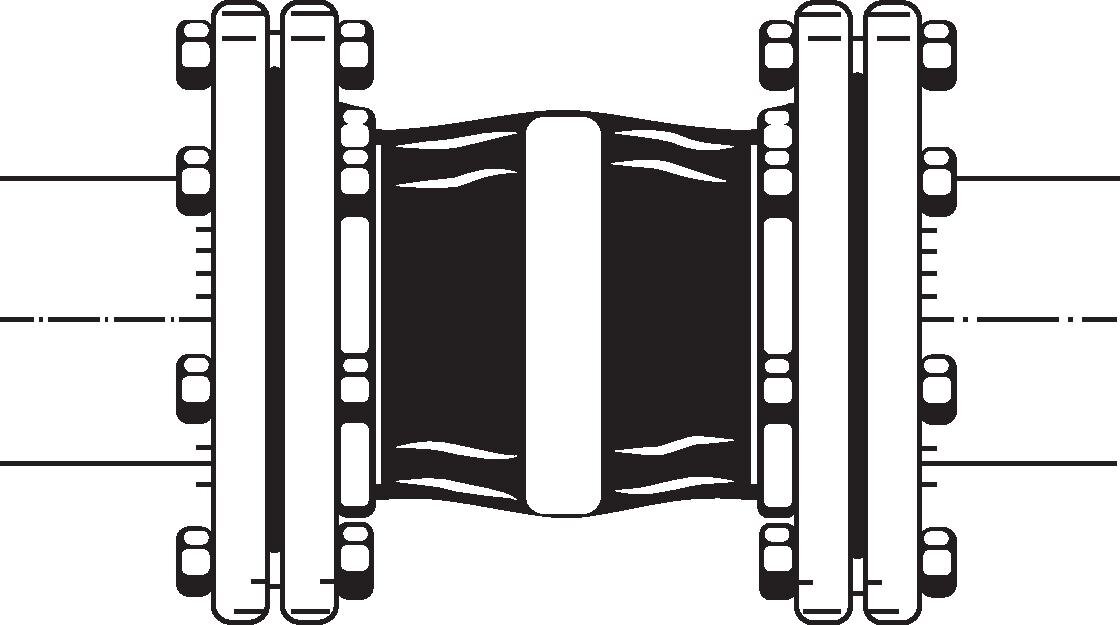

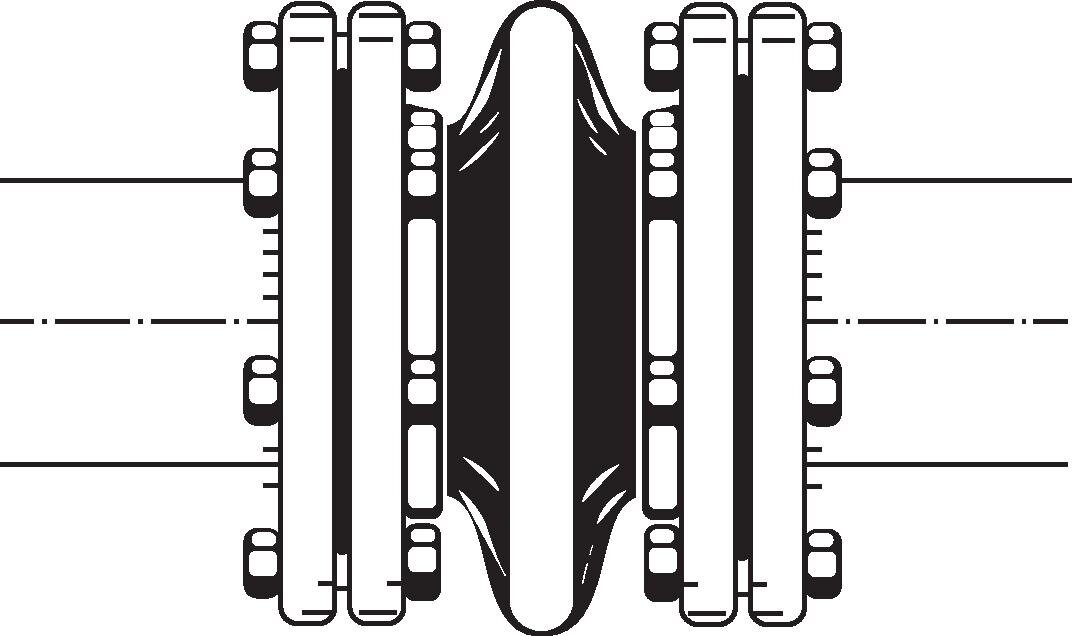

| Axial compression [mm] | 30 |
| Axial stretching [mm] | 10 |

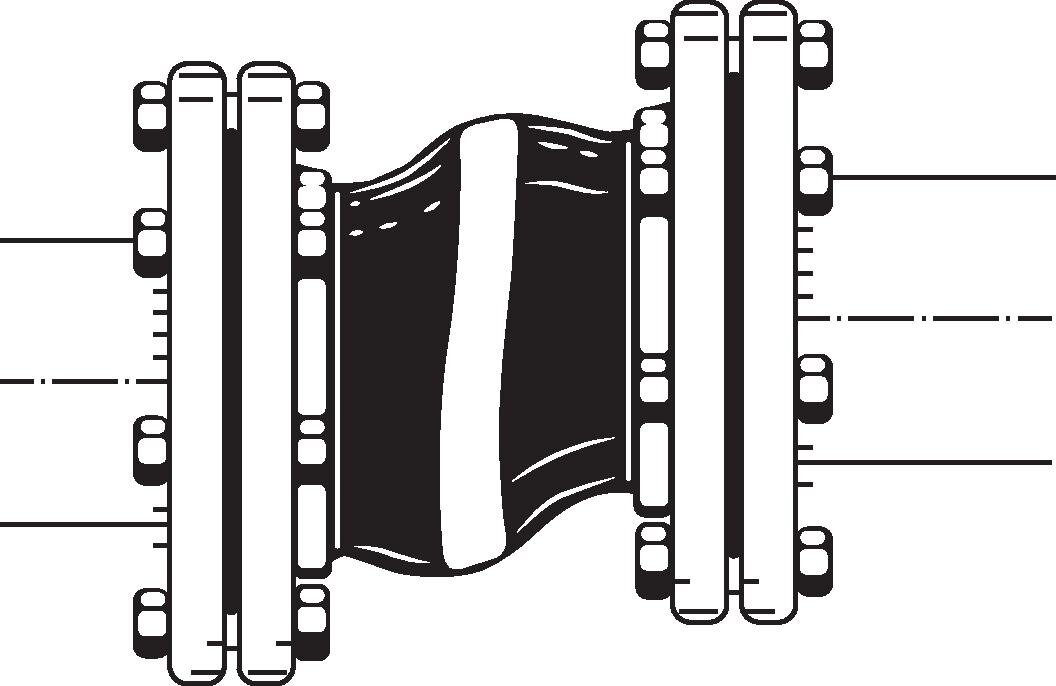

| Lateral offset [mm] | 13 |
| Angular deviation [°] | 15 |

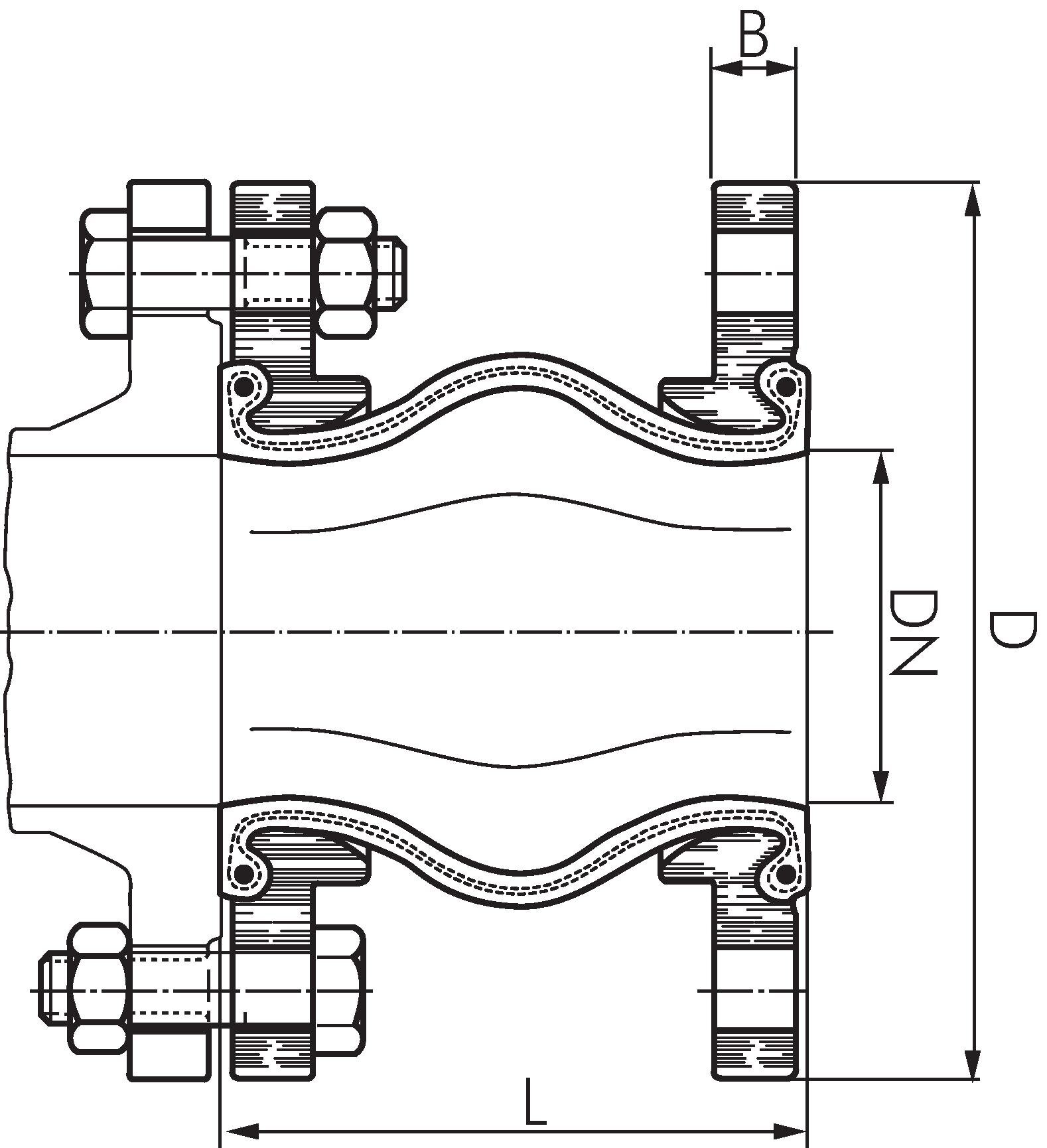

| L [mm] | 130 |
| B [mm] | 18 |
| D [mm] | 220 |
| Number of holes | 8 |
Further information on KOMFLK100
| Weight | 7 kg / pcs |
| GTIN | 4050571444877 |
| Customs duty number | 40169991 |
| RoHS compliant | Yes |
