Item description
Version:

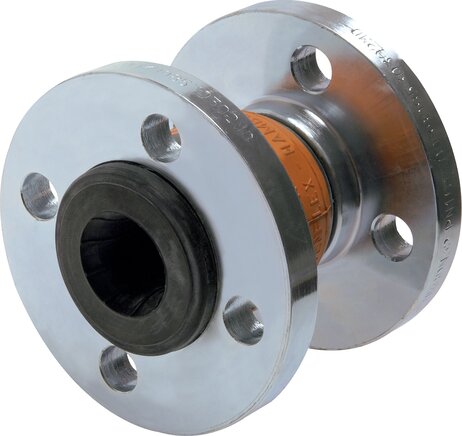

Flat corrugated, compression-moulded rubber bellows, highly elastic with synthetic fibre pressure carrier (high-temperature version: steel cord) and wire-reinforced rubber flange collar (self-sealing), swivelling steel flanges on both sides
Equalising capacity:
axial (compression/extension), lateral (lateral offset), angular (angular deviation)
Materials:
Bellows: EPDM (hot water, acid and alkalis resistant), flange: RSt 37.2 galvanised zinc plated
Temperature range:
Max. +90°C (high temperature version: max. +110°C), from +60°C reduced operating pressures
Operating pressure (standard):
up to +60°C: 16 bar, +80°C: 11 bar,+90°C: 6 bar, bursting pressure: 48 bar (For intermittent loading, the max. operating pressure should be set by 30% lower)
Operating pressure (high temperature version):
up to +60°C: 16 bar, +80°C: 14 bar,+90°C: 12 bar,+100°C: 10 bar,+110°C: 6 bar, bursting pressure: 48 bar (For intermittent loading, the max. operating pressure should be set by 30% lower)
Warning:
When installing the compensator, it is urged to follow the assembly instructions in all cases!
Optional:
EPDM bellows, high-temperature version (+110°C)-HT, NBR bellows, oil-resistant -B, NBR bellows, oil-resistant, high-temperature version (+110°C)-BHT, butyl bellows (CIIR), for use with drinking water in accordance with KTW recommendation -LE
Flat corrugated, compression-moulded rubber bellows, highly elastic with synthetic fibre pressure carrier (high-temperature version: steel cord) and wire-reinforced rubber flange collar (self-sealing), swivelling steel flanges on both sides
Equalising capacity:
axial (compression/extension), lateral (lateral offset), angular (angular deviation)
Materials:
Bellows: EPDM (hot water, acid and alkalis resistant), flange: RSt 37.2 galvanised zinc plated
Temperature range:
Max. +90°C (high temperature version: max. +110°C), from +60°C reduced operating pressures
Operating pressure (standard):
up to +60°C: 16 bar, +80°C: 11 bar,+90°C: 6 bar, bursting pressure: 48 bar (For intermittent loading, the max. operating pressure should be set by 30% lower)
Operating pressure (high temperature version):
up to +60°C: 16 bar, +80°C: 14 bar,+90°C: 12 bar,+100°C: 10 bar,+110°C: 6 bar, bursting pressure: 48 bar (For intermittent loading, the max. operating pressure should be set by 30% lower)
Warning:
When installing the compensator, it is urged to follow the assembly instructions in all cases!
Optional:
EPDM bellows, high-temperature version (+110°C)-HT, NBR bellows, oil-resistant -B, NBR bellows, oil-resistant, high-temperature version (+110°C)-BHT, butyl bellows (CIIR), for use with drinking water in accordance with KTW recommendation -LE
Properties

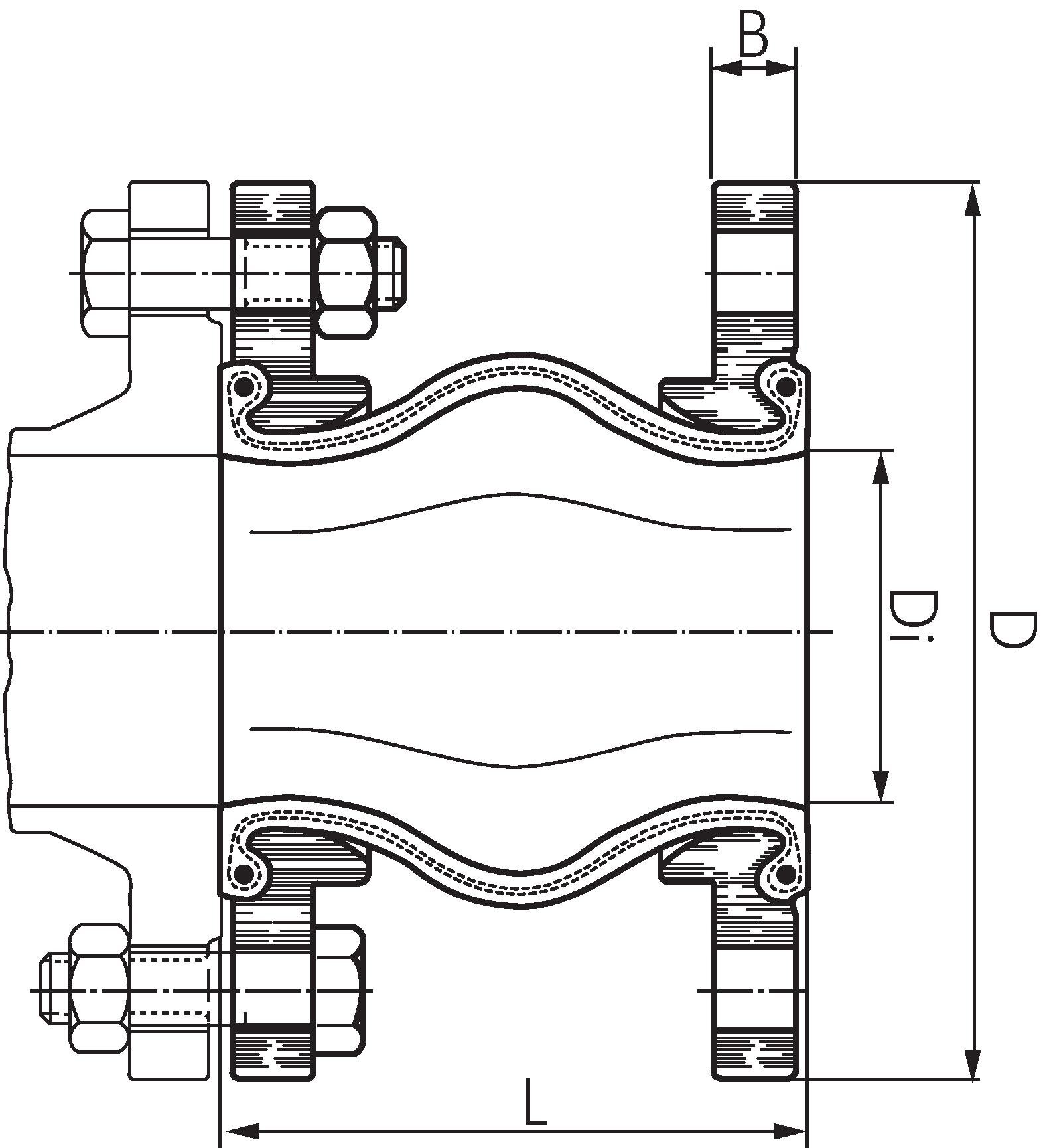

| Flange connection | DN32-PN16 (DIN) |
| Bellows version | EPDM |
| DN [mm] | 32 |
| Operating pressure [bar] | -1 to 16 |
| Axial compression [mm] | 35 |
| Axial stretching [mm] | 10 |
| Lateral offset [mm] | 15 |
| Angular deviation [°] | 25 |
| L [mm] | 125 |
| B [mm] | 16 |
| D [mm] | 140 |
| Di (± 3) [mm] | 31 |
Further information on KOMFL32
| Weight | 3,3 kg / pcs |
| GTIN | 4050571444679 |
| Customs duty number | 40169991 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 450) (PDF)
- Documentation: Elastomer expansion joints (PDF)
- Documentation: PED statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
