Item description
Version:

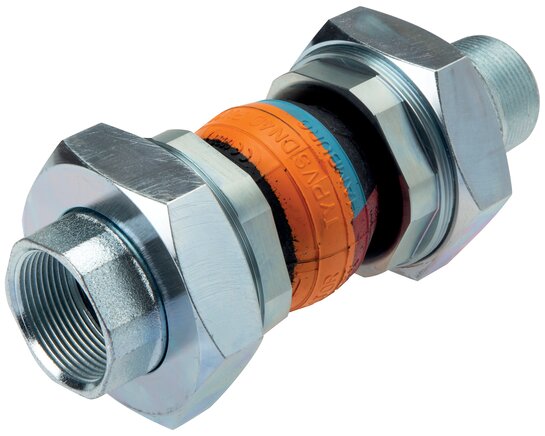

elastic, form-pressed bellows, reinforcement carrier made of synthetic fibres, connections screwed on both the sides
Equalising capacity:
axial (compression/extension), lateral (lateral offset), angular (angular deviation)
Materials:
Bellows: EPDM (hot water, acid and alkalis resistant), thread connections: Malleable cast iron, galvanised zinc plated, flat seal: Aramide NBR
Temperature range:
max. +110 °C (depending on operating pressure)
Operating pressure:
-1 to 16 bar (from +60°C: 10 bar, from +100°C: 6 bar), burst pressure: 50 bar (For intermittent loading, the max. operating pressure should be set approx. 30% lower)
Warning:
When installing the compensator, it is urged to follow the assembly instructions in all cases!
Optional:
Bellows from NBR, oil resistant -B
elastic, form-pressed bellows, reinforcement carrier made of synthetic fibres, connections screwed on both the sides
Equalising capacity:
axial (compression/extension), lateral (lateral offset), angular (angular deviation)
Materials:
Bellows: EPDM (hot water, acid and alkalis resistant), thread connections: Malleable cast iron, galvanised zinc plated, flat seal: Aramide NBR
Temperature range:
max. +110 °C (depending on operating pressure)
Operating pressure:
-1 to 16 bar (from +60°C: 10 bar, from +100°C: 6 bar), burst pressure: 50 bar (For intermittent loading, the max. operating pressure should be set approx. 30% lower)
Warning:
When installing the compensator, it is urged to follow the assembly instructions in all cases!
Optional:
Bellows from NBR, oil resistant -B
Properties
| G1 | R 1-1/2" (male thread) |
| G2 | R 1-1/2" (male thread) |
| Bellows version | EPDM |
| Version | Male thread |
| DN [mm] | 40 |
| Axial compression [mm] | 30 |
| Axial stretching [mm] | 10 |
| Lateral offset [mm] | 15 |

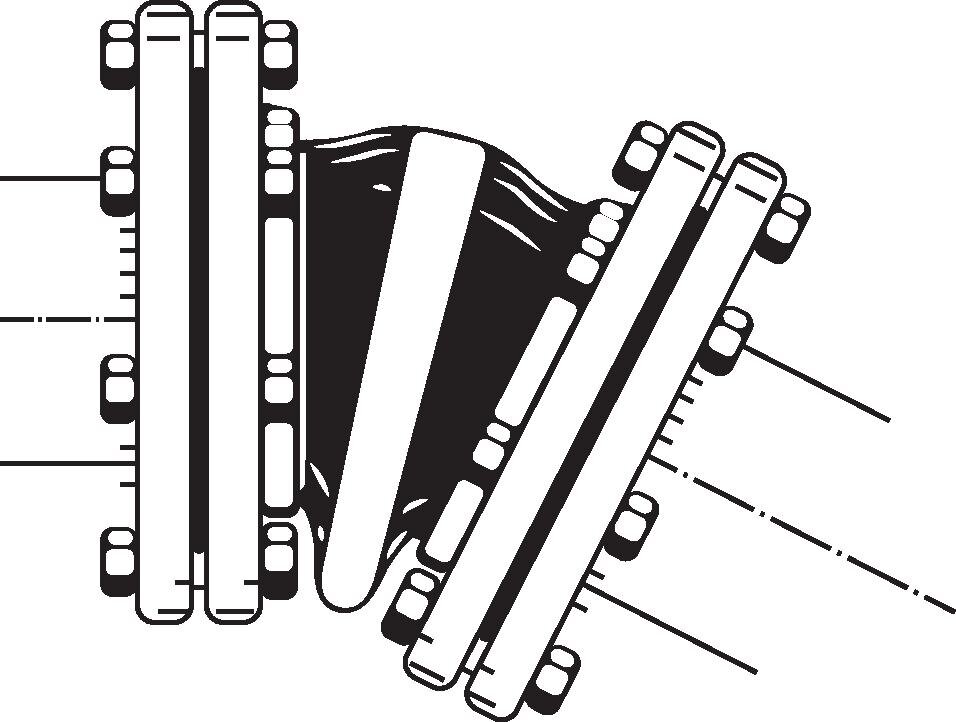

| Angular deviation [°] | 25 |
| L [mm] | 239 |
| SW1 [mm] | 75 |
| SW2 [mm] | 54 |
Further information on KOM40AG
| Weight | 2,7 kg / pcs |
| GTIN | 4050571443382 |
| Customs duty number | 40169991 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 451) (PDF)
- Documentation: Elastomer expansion joints (PDF)
- Documentation: PED statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
